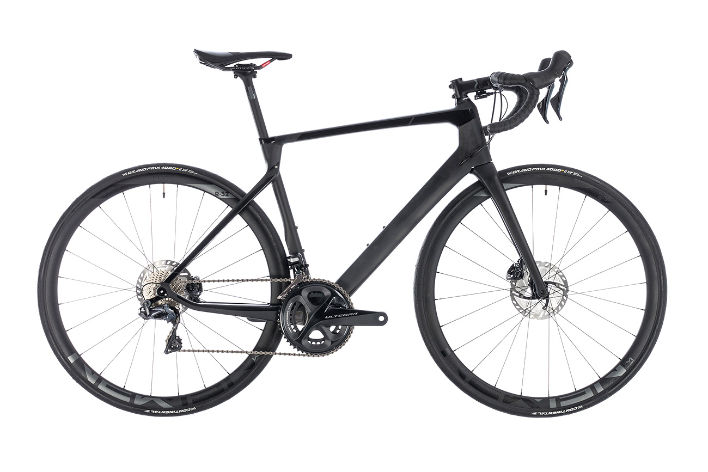

2018 Cube Agree C:62 Disc geometry
Full frame geometry for the 2018 Cube Agree C:62 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 523 | 378 | 74.6 | 71.5 | 120 | 522 | 440 | 73 | 412 | 984 |
| 53 | 544 | 383 | 74 | 72 | 140 | 538 | 470 | 73 | 412 | 992 |
| 56 | 573 | 390 | 73.5 | 72.5 | 170 | 560 | 500 | 71 | 412 | 1006 |
| 58 | 592 | 394 | 73 | 72.5 | 190 | 575 | 520 | 71 | 412 | 1014 |
| 60 | 607 | 399 | 72.5 | 72.5 | 208 | 590 | 540 | 69 | 412 | 1025 |
| 62 | 629 | 402 | 72.5 | 72.5 | 231 | 600 | 560 | 69 | 412 | 1036 |
All measurements in millimetres unless marked (°) for angles.
