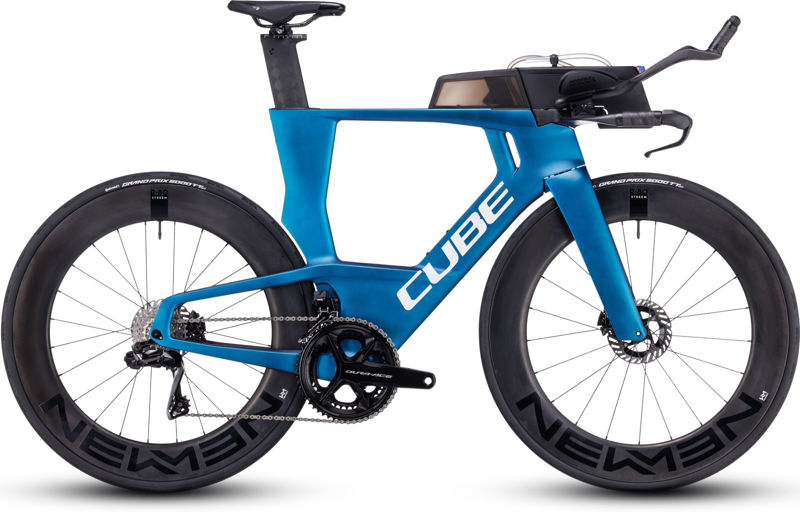

2023 Cube AERIUM C:68X SLT geometry
Full frame geometry for the 2023 Cube AERIUM C:68X SLT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 487 | 395 | 78 | 72 | 74 | 499 | 535 | -78 | 410 | 979 |
| S | 497 | 405 | 78 | 72 | 85 | 511 | 545 | -78 | 410 | 992 |
| M | 517 | 421 | 78 | 72 | 106 | 531 | 566 | -78 | 410 | 1015 |
| L | 539 | 442 | 78 | 72 | 129 | 557 | 588 | -78 | 410 | 1043 |
All measurements in millimetres unless marked (°) for angles.
