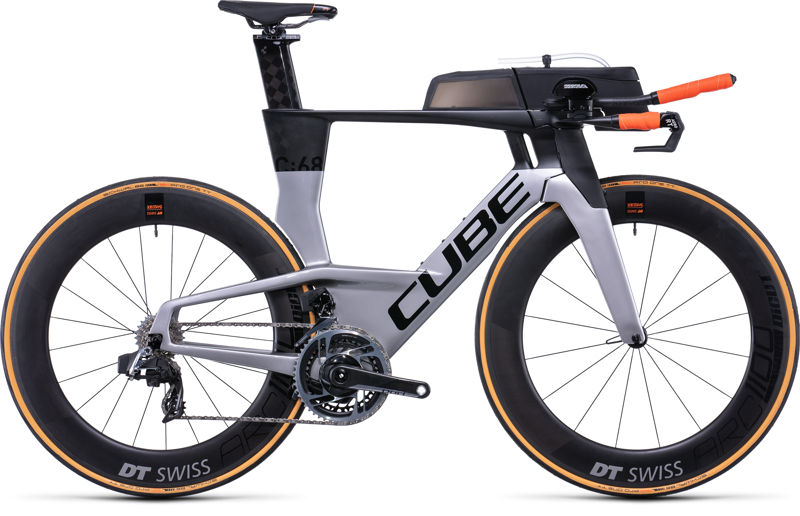

2022 Cube Aerium C:68 geometry
Full frame geometry for the 2022 Cube Aerium C:68, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 487 | 396 | 78 | 74 | 499 | 535 | 782 | 78 | 395 | 964 |
| S | 498 | 405 | 78 | 85 | 511 | 545 | 798 | 78 | 395 | 977 |
| M | 518 | 421 | 78 | 106 | 531 | 566 | 818 | 78 | 395 | 999 |
| L | 540 | 442 | 78 | 129 | 557 | 588 | 840 | 78 | 395 | 1028 |
All measurements in millimetres unless marked (°) for angles.
