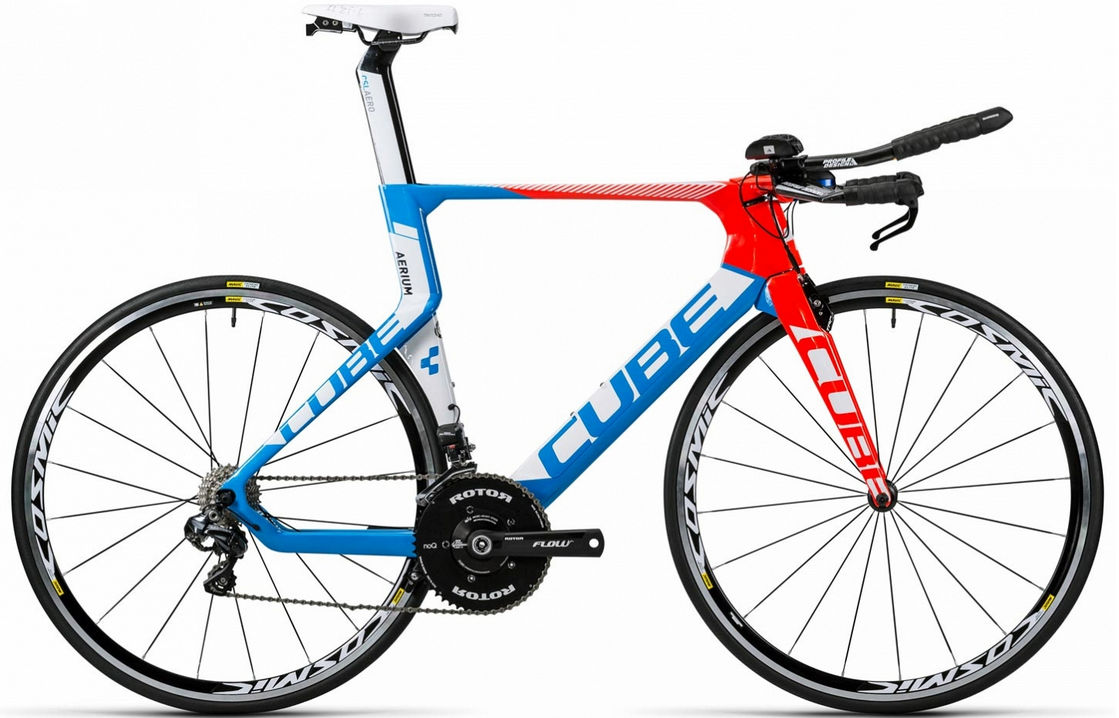

2015 Cube Aerium C:62 geometry
Full frame geometry for the 2015 Cube Aerium C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 498 | 395 | 77 | 71.5 | 95 | 510 | 544 | 70 | 395 | 976 |
| M | 514 | 416 | 77.5 | 72 | 110 | 530 | 559 | 70 | 395 | 998 |
| L | 530 | 437 | 78 | 72.5 | 125 | 550 | 574 | 70 | 395 | 1019 |
| XL | 549 | 453 | 79 | 72.5 | 145 | 560 | 593 | 70 | 395 | 1041 |
All measurements in millimetres unless marked (°) for angles.
