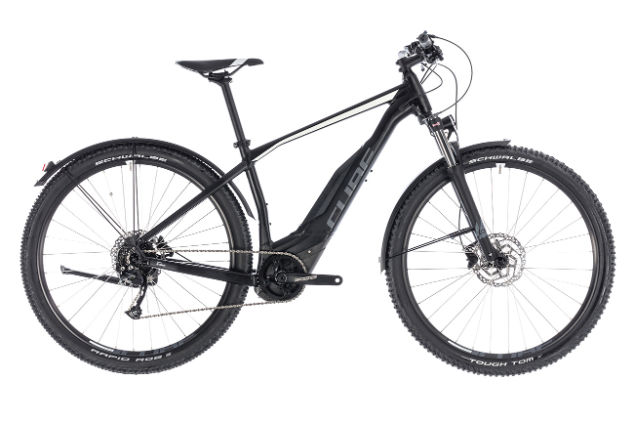

2018 Cube Acid Hybrid geometry
Full frame geometry for the 2018 Cube Acid Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 615 | 378 | 73.5 | 69 | 105 | 560 | 370 | 65 | 470 | 1109 |
| 17 | 622 | 391 | 73.5 | 69 | 112 | 575 | 405 | 65 | 470 | 1125 |
| 19 | 632 | 408 | 73.5 | 69 | 123 | 595 | 450 | 65 | 470 | 1146 |
| 21 | 641 | 425 | 73.5 | 69 | 133 | 615 | 495 | 65 | 470 | 1166 |
| 23 | 655 | 441 | 73.5 | 69 | 148 | 635 | 545 | 65 | 470 | 1188 |
All measurements in millimetres unless marked (°) for angles.
