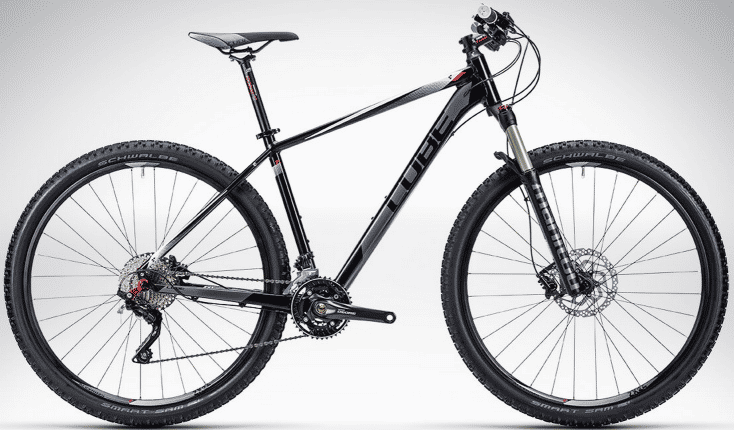

2014 Cube Acid 29 geometry
Full frame geometry for the 2014 Cube Acid 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 611 | 379 | 73.5 | 69 | 105 | 560 | 370 | 60 | 450 | 1091 |
| 17 | 618 | 381 | 73 | 69.5 | 110 | 570 | 420 | 60 | 450 | 1090 |
| 19 | 629 | 398 | 73 | 70 | 120 | 590 | 470 | 60 | 450 | 1105 |
| 21 | 639 | 415 | 73 | 73 | 130 | 610 | 515 | 60 | 450 | 1126 |
| 23 | 653 | 420 | 73 | 70 | 145 | 620 | 565 | 60 | 450 | 1136 |
All measurements in millimetres unless marked (°) for angles.
