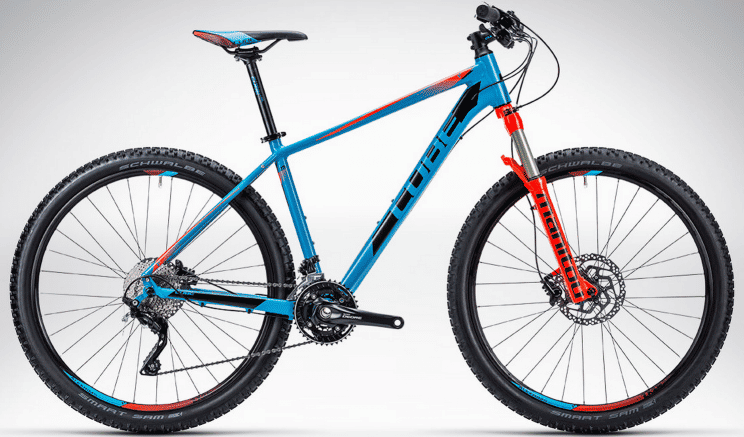

2014 Cube Acid 27.5 geometry
Full frame geometry for the 2014 Cube Acid 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 593 | 352 | 73.5 | 69 | 105 | 527 | 355 | 52 | 427 | 1030 |
| 16 | 593 | 375 | 73.5 | 69 | 105 | 550 | 405 | 52 | 427 | 1053 |
| 18 | 616 | 390 | 73.5 | 70 | 125 | 572 | 450 | 52 | 427 | 1066 |
| 20 | 635 | 405 | 73.5 | 70 | 145 | 593 | 490 | 52 | 427 | 1088 |
All measurements in millimetres unless marked (°) for angles.
