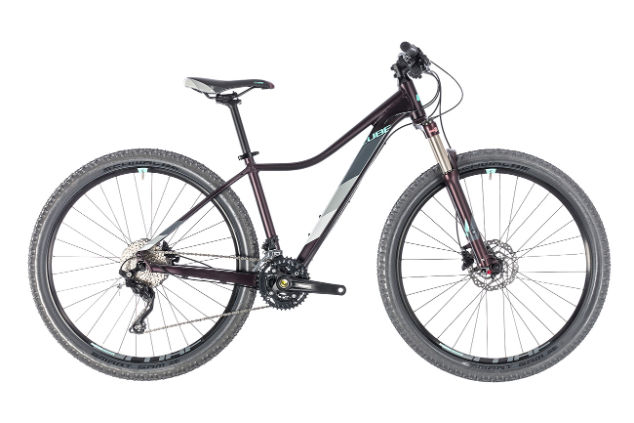

2018 Cube Access WS geometry
Full frame geometry for the 2018 Cube Access WS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 597 | 345 | 73.5 | 69 | 110 | 522 | 355 | 52 | 427 | 1026 |
| 16 | 597 | 368 | 73.5 | 69 | 110 | 545 | 405 | 52 | 427 | 1049 |
| 17 | 622 | 375 | 73 | 69.5 | 115 | 565 | 420 | 60 | 450 | 1085 |
| 19 | 634 | 391 | 73 | 70 | 125 | 585 | 470 | 60 | 450 | 1100 |
All measurements in millimetres unless marked (°) for angles.
