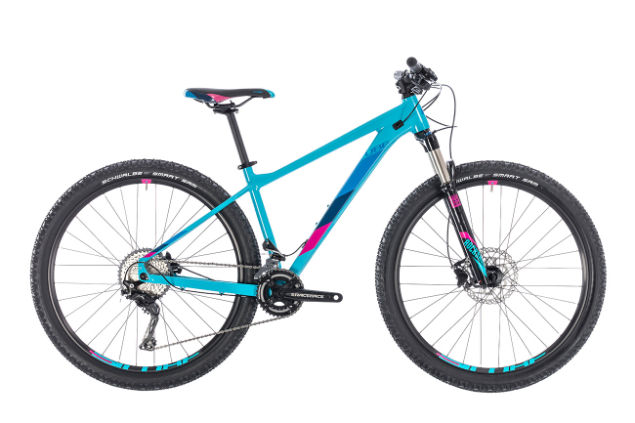

2018 Cube Access WS SL geometry
Full frame geometry for the 2018 Cube Access WS SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 592 | 373 | 73.5 | 69 | 106 | 545 | 355 | 52 | 410 | 1034 |
| 16 | 594 | 388 | 73.5 | 69 | 110 | 561 | 405 | 52 | 410 | 1050 |
| 17 | 621 | 393 | 73.5 | 69 | 114 | 575 | 420 | 65 | 423 | 1079 |
| 19 | 632 | 410 | 73.5 | 69 | 124 | 595 | 470 | 65 | 423 | 1100 |
All measurements in millimetres unless marked (°) for angles.
