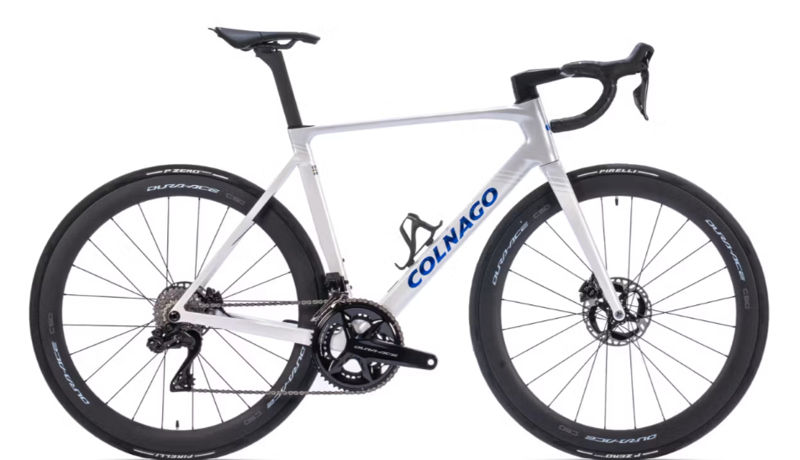

2025 Colnago V5Rs geometry
Full frame geometry for the 2025 Colnago V5Rs, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 420 | 509 | 371 | 75.5 | 70.6 | 101 | 579 | 420 | 683 | 74 | 503 | 408 | 47 | 70 |
| 455 | 523 | 377 | 75.3 | 71.5 | 112 | 581.5 | 455 | 714 | 74 | 514 | 408 | 47 | 65 |
| 485 | 539 | 384 | 74.8 | 72.3 | 127 | 586.5 | 485 | 743 | 72 | 530 | 408 | 47 | 59.5 |
| 510 | 557 | 390 | 74.5 | 72.5 | 146 | 596.5 | 510 | 766 | 72 | 544 | 408 | 47 | 58.5 |
| 530 | 575 | 397 | 73.8 | 73 | 162 | 600 | 530 | 784 | 72 | 564 | 408 | 43 | 59.5 |
| 550 | 593 | 404 | 73.5 | 73 | 181 | 612.5 | 550 | 801 | 72 | 578 | 408 | 43 | 59.5 |
| 570 | 612 | 411 | 73.3 | 73.5 | 199 | 622 | 570 | 820 | 72 | 595 | 408 | 43 | 57.5 |
All measurements in millimetres unless marked (°) for angles.
