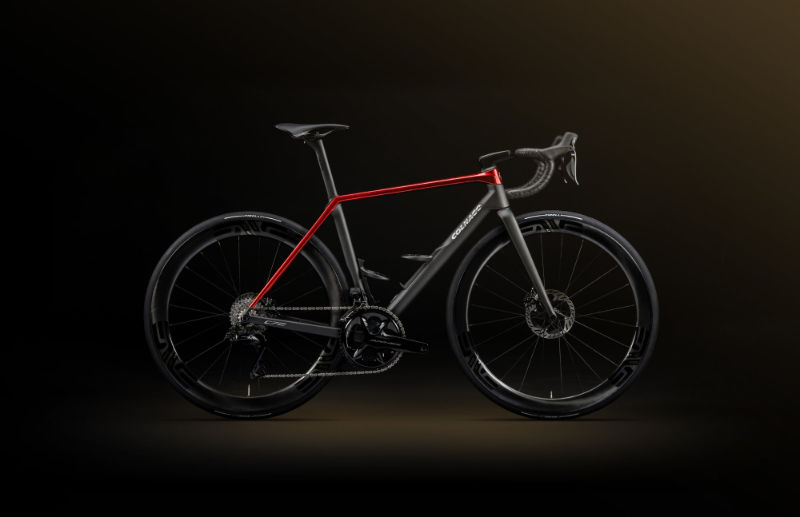

2026 Colnago C72 Road geometry
Full frame geometry for the 2026 Colnago C72 Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 420 | 512 | 370 | 75.5 | 70.8 | 101 | 505 | 420 | 679 | 74 | 575 | 408 | 971 | 45 | 73.2 |
| 455 | 525 | 375 | 75.3 | 71.6 | 112 | 514 | 455 | 713 | 74 | 577 | 408 | 974 | 45 | 68 |
| 485 | 543 | 382 | 74.8 | 72.5 | 129.5 | 526 | 485 | 740 | 72 | 582 | 408 | 979 | 45 | 62.2 |
| 510 | 562 | 387 | 74.5 | 72.9 | 148 | 543 | 510 | 762 | 72 | 589 | 410 | 988 | 45 | 59.7 |
| 530 | 580 | 394 | 73.8 | 72.9 | 167 | 563 | 530 | 781 | 72 | 602 | 410 | 1001 | 45 | 59.7 |
| 550 | 599 | 402 | 73.5 | 72.9 | 187 | 577 | 550 | 802 | 72 | 615 | 412 | 1017 | 45 | 59.7 |
| 570 | 619 | 409 | 73.3 | 72.9 | 207 | 591 | 570 | 820 | 72 | 628 | 412 | 1030 | 45 | 59.7 |
All measurements in millimetres unless marked (°) for angles.
