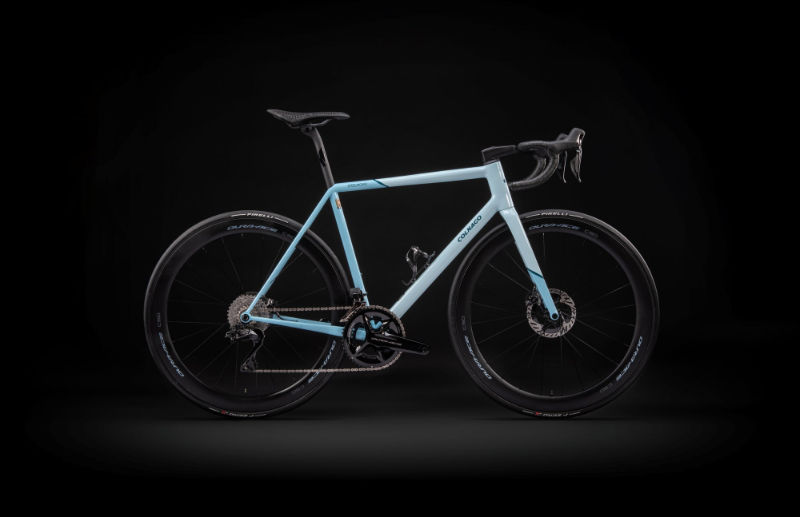

2026 Colnago Steelnovo geometry
Full frame geometry for the 2026 Colnago Steelnovo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 420 | 512 | 370 | 75.5 | 70.8 | 106 | 74 | 573 | 410 |
| 455 | 525 | 375 | 75.3 | 71.6 | 117 | 74 | 575.3 | 410 |
| 485 | 543 | 382 | 74.8 | 72.5 | 135 | 72 | 580.2 | 410 |
| 510 | 562 | 387 | 74.5 | 72.9 | 153 | 72 | 587.3 | 410 |
| 530 | 580 | 394 | 73.8 | 72.9 | 172 | 72 | 599.8 | 415 |
| 550 | 599 | 402 | 73.5 | 72.9 | 192 | 72 | 613.5 | 415 |
| 570 | 619 | 409 | 73.3 | 72.9 | 213 | 72 | 626.5 | 415 |
All measurements in millimetres unless marked (°) for angles.
