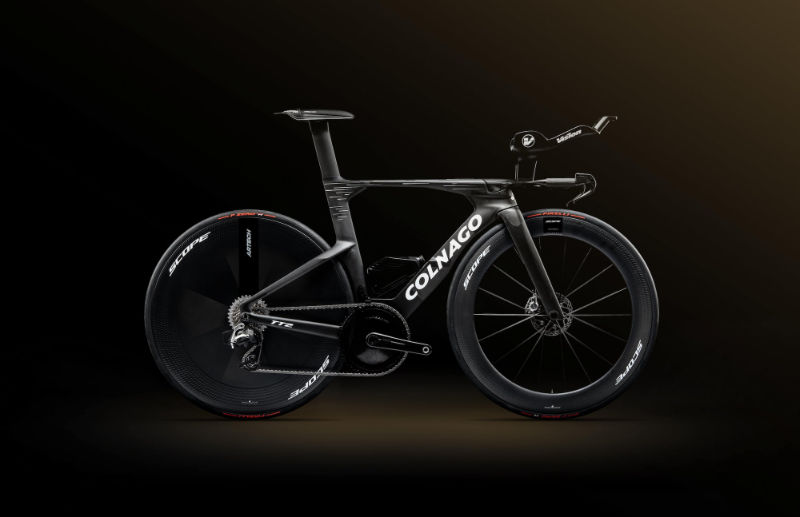

2027 Colnago TT2 geometry
Full frame geometry for the 2027 Colnago TT2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 468 | 385 | 76.5 | 71 | 766 | 75 | 571 | 408 | 967 | 43 | 70 |
| S | 473 | 400 | 76.5 | 72.5 | 771 | 75 | 575 | 408 | 972 | 43 | 62 |
| M | 501 | 415 | 77 | 72.5 | 801 | 75 | 599 | 408 | 995 | 43 | 62 |
| L | 523 | 430 | 77 | 72.5 | 824 | 75 | 620 | 408 | 1017 | 43 | 62 |
All measurements in millimetres unless marked (°) for angles.
