2026 Colnago V4 geometry

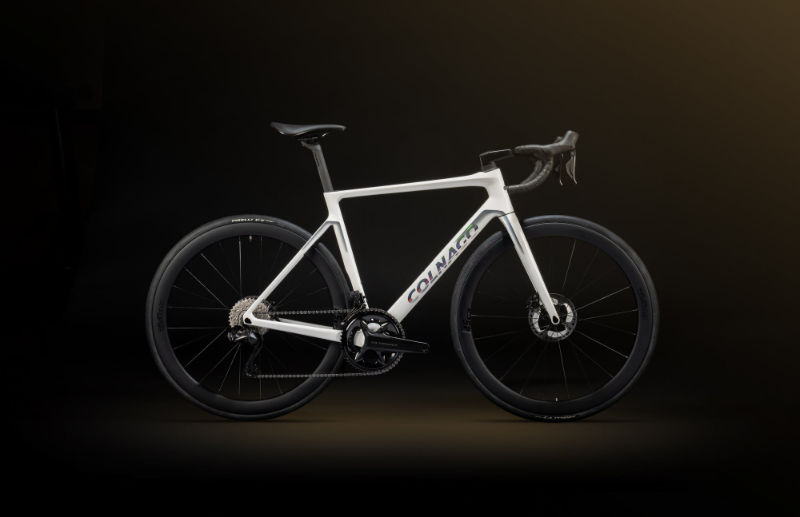

Name: 2026 Colnago V4
Brand: Colnago

Full frame geometry for the 2026 Colnago V4, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
420	510	370	75.5	70.6	103	504	72	576	408	43
455	522	375	75	71	114	517	72	582	408	43
485	539	383	74.5	71.5	130	535	72	591	408	43
510	557	388	74	71.8	148	550	72	597	408	43
530	575	395	73.5	72.5	164	567	72	599	408	43
550	593	403	73	72.9	181	586	72	608	408	43
570	612	410	73	73.1	200	599	72	619	408	43

All measurements in millimetres unless marked (°) for angles.
