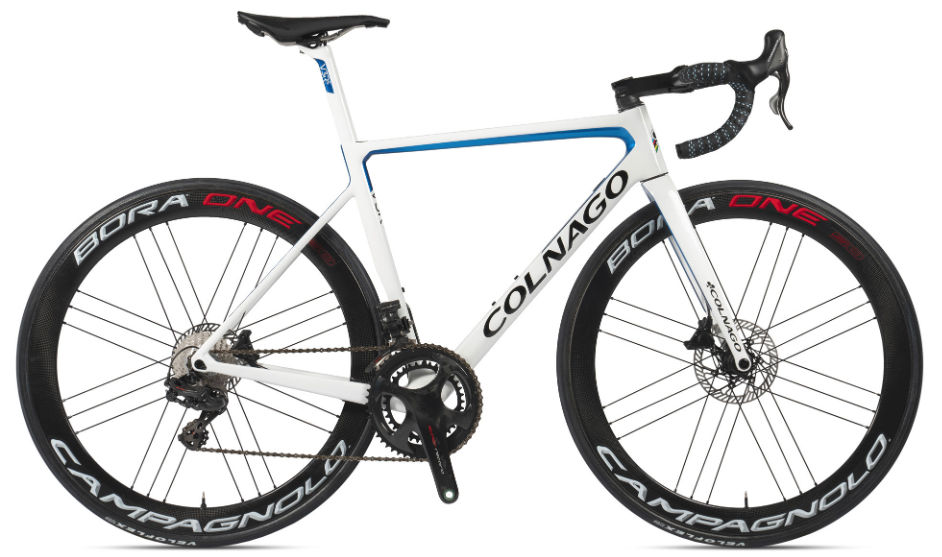

2019 Colnago V3RS Disc geometry
Full frame geometry for the 2019 Colnago V3RS Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 514 | 368 | 75.5 | 70.6 | 113 | 501 | 420 | 725 | 67 | 580 | 408 | 979 |
| 45s | 520 | 375 | 75 | 71 | 114 | 514 | 450 | 741 | 70 | 580 | 408 | 978 |
| 48s | 525 | 380 | 74.5 | 71.5 | 117 | 526 | 480 | 759 | 71 | 581 | 408 | 978 |
| 50s | 542 | 382 | 74 | 71.6 | 132 | 537 | 500 | 777 | 72 | 588 | 410 | 987 |
| 52s | 560 | 384 | 73.6 | 71.9 | 151 | 549 | 520 | 797 | 72 | 593 | 410 | 992 |
| 54s | 578 | 390 | 73.1 | 72.5 | 168 | 565 | 540 | 818 | 72 | 599 | 414 | 1002 |
| 56s | 586 | 400 | 73 | 72.9 | 175 | 579 | 560 | 832 | 72 | 607 | 414 | 1010 |
| 58s | 604 | 408 | 73 | 73.1 | 193 | 593 | 580 | 852 | 72 | 619 | 414 | 1022 |
All measurements in millimetres unless marked (°) for angles.
