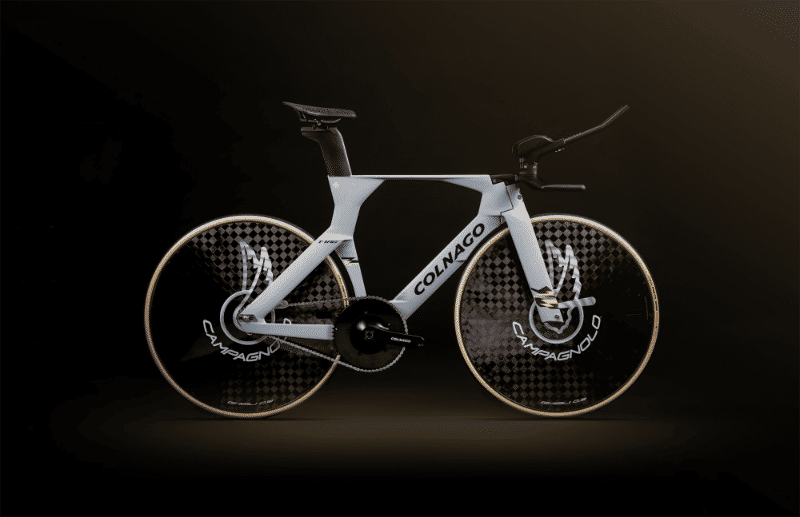

2026 Colnago T1Rs geometry
Full frame geometry for the 2026 Colnago T1Rs, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 468 | 417 | 73 | 75 | 594 | 55 | 387 | 977 | 44.5 |
| M | 494 | 430 | 73 | 100.5 | 614 | 55 | 387 | 997 | 44.5 |
| L | 520 | 461 | 73 | 121 | 652 | 55 | 387 | 1036 | 44.5 |
All measurements in millimetres unless marked (°) for angles.
