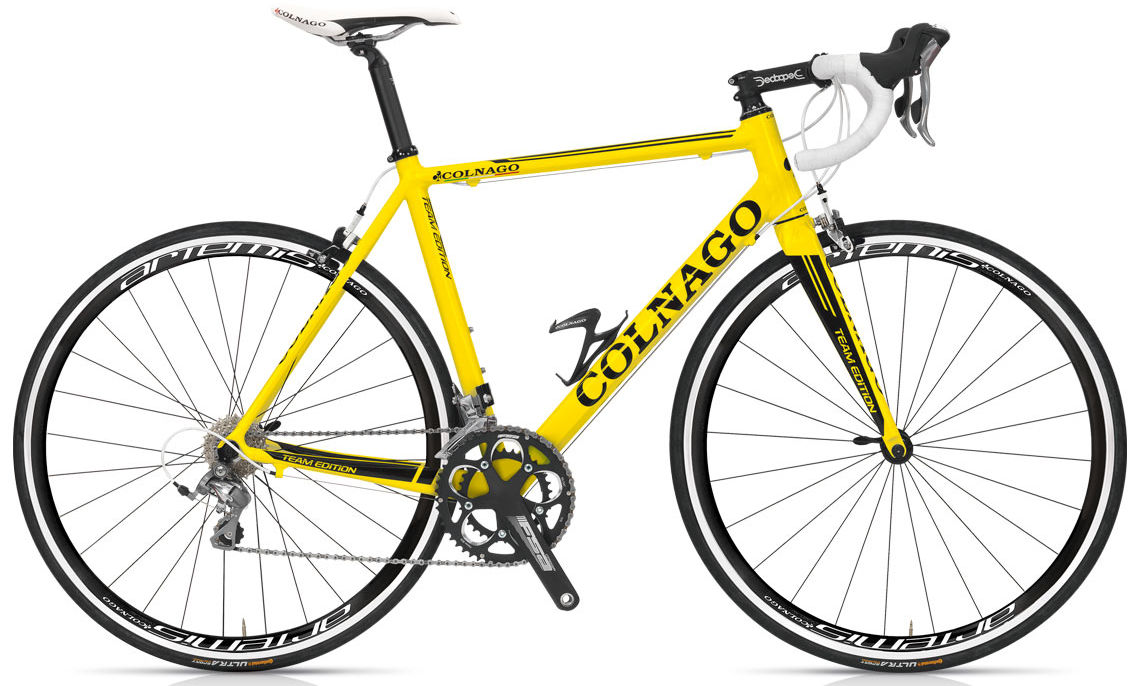

2014 Colnago Strada SL geometry
Full frame geometry for the 2014 Colnago Strada SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 516 | 377 | 75.5 | 70.4 | 119 | 510 | 433 | 740 | 68 | 580 | 400 | 970 | 43 | 74 |
| 45s | 520 | 380 | 75.1 | 70.9 | 122 | 518 | 463 | 758 | 68 | 582 | 401 | 973 | 43 | 70 |
| 48s | 528 | 384 | 74.6 | 71.3 | 129 | 530 | 493 | 778 | 68 | 585 | 403 | 978 | 43 | 67 |
| 50s | 546 | 383 | 74 | 71.5 | 147 | 540 | 513 | 798 | 68 | 589 | 406 | 985 | 43 | 67 |
| 52s | 563 | 384 | 73.6 | 71.7 | 164 | 550 | 533 | 818 | 68 | 593 | 407 | 990 | 43 | 65 |
| 54s | 576 | 387 | 72.8 | 72.2 | 176 | 565 | 553 | 836 | 68 | 596 | 412 | 998 | 43 | 62 |
| 56s | 585 | 398 | 72.7 | 72.8 | 183 | 580 | 573 | 851 | 68 | 606 | 413 | 1010 | 43 | 59 |
| 58s | 604 | 402 | 72.7 | 72.7 | 203 | 590 | 593 | 871 | 68 | 614 | 413 | 1018 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
