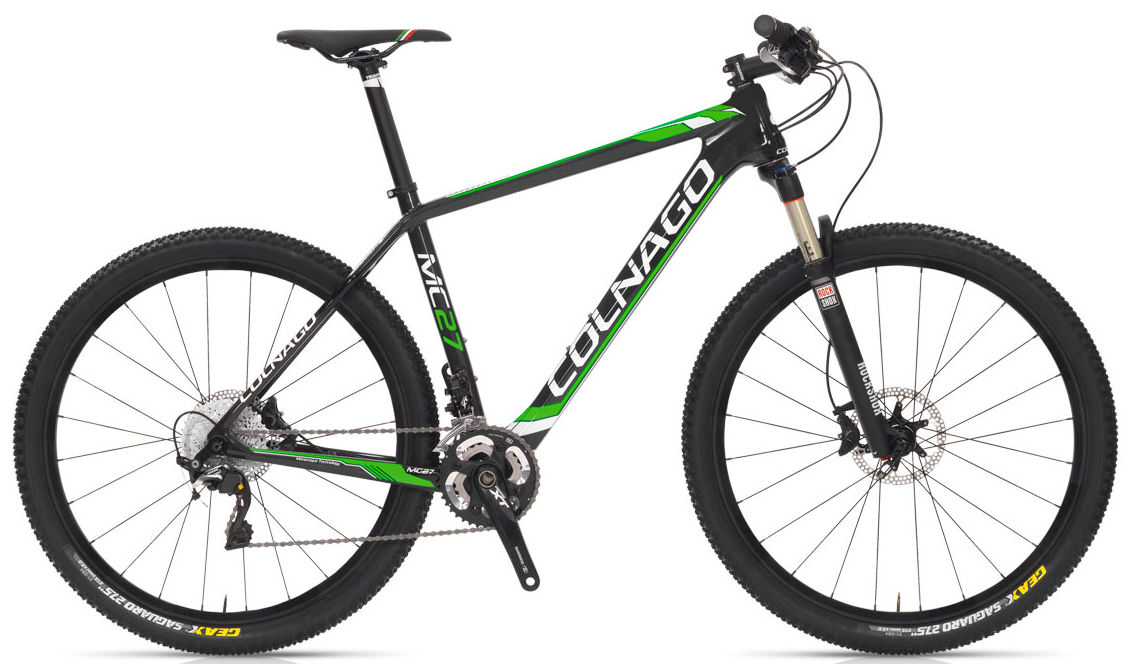

2015 Colnago MC27 geometry
Full frame geometry for the 2015 Colnago MC27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 594 | 390 | 73.4 | 70.5 | 100 | 560 | 400 | 793 | 55 | 631 | 430 | 1055 | 46 |
| 17 | 606 | 409 | 73 | 71 | 110 | 585 | 445 | 823 | 55 | 648 | 430 | 1072 | 46 |
| 19 | 615 | 419 | 73 | 71 | 120 | 600 | 485 | 849 | 55 | 659 | 430 | 1083 | 46 |
| 21 | 637 | 434 | 73.7 | 71.5 | 140 | 615 | 530 | 882 | 55 | 675 | 430 | 1099 | 46 |
All measurements in millimetres unless marked (°) for angles.
