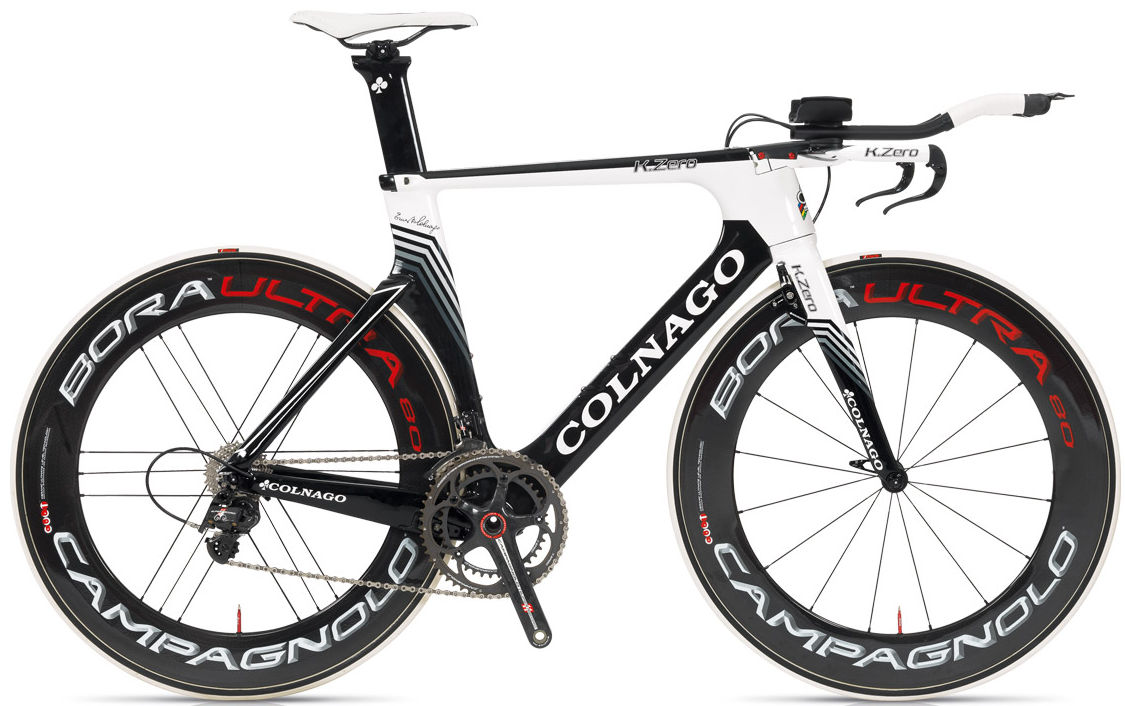

2013 Colnago K-Zero geometry
Full frame geometry for the 2013 Colnago K-Zero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 507 | 393 | 77 | 70 | 78 | 509 | 449 | 742 | 68 | 576 | 384 |
| M | 513 | 402 | 77 | 72.5 | 85 | 520 | 508 | 775 | 68 | 594 | 384 |
| L | 533 | 407 | 77 | 72.5 | 105 | 528 | 528 | 796 | 68 | 597 | 384 |
| XL | 554 | 424 | 77 | 72.5 | 123 | 551 | 548 | 817 | 68 | 621 | 384 |
All measurements in millimetres unless marked (°) for angles.
