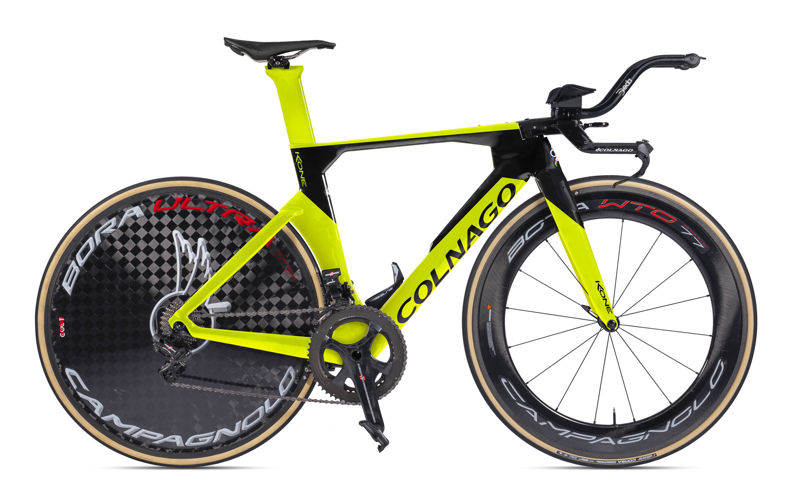

2022 Colnago K.one geometry
Full frame geometry for the 2022 Colnago K.one, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 485 | 385 | 77 | 73 | 63.5 | 466 | 70 | 561 | 410 |
| S | 500 | 405 | 77 | 73 | 79 | 500 | 70 | 586 | 410 |
| M | 524 | 420 | 77 | 73 | 105 | 536 | 70 | 608 | 410 |
| L | 549 | 440 | 77 | 73 | 127 | 576 | 70 | 634 | 410 |
All measurements in millimetres unless marked (°) for angles.
