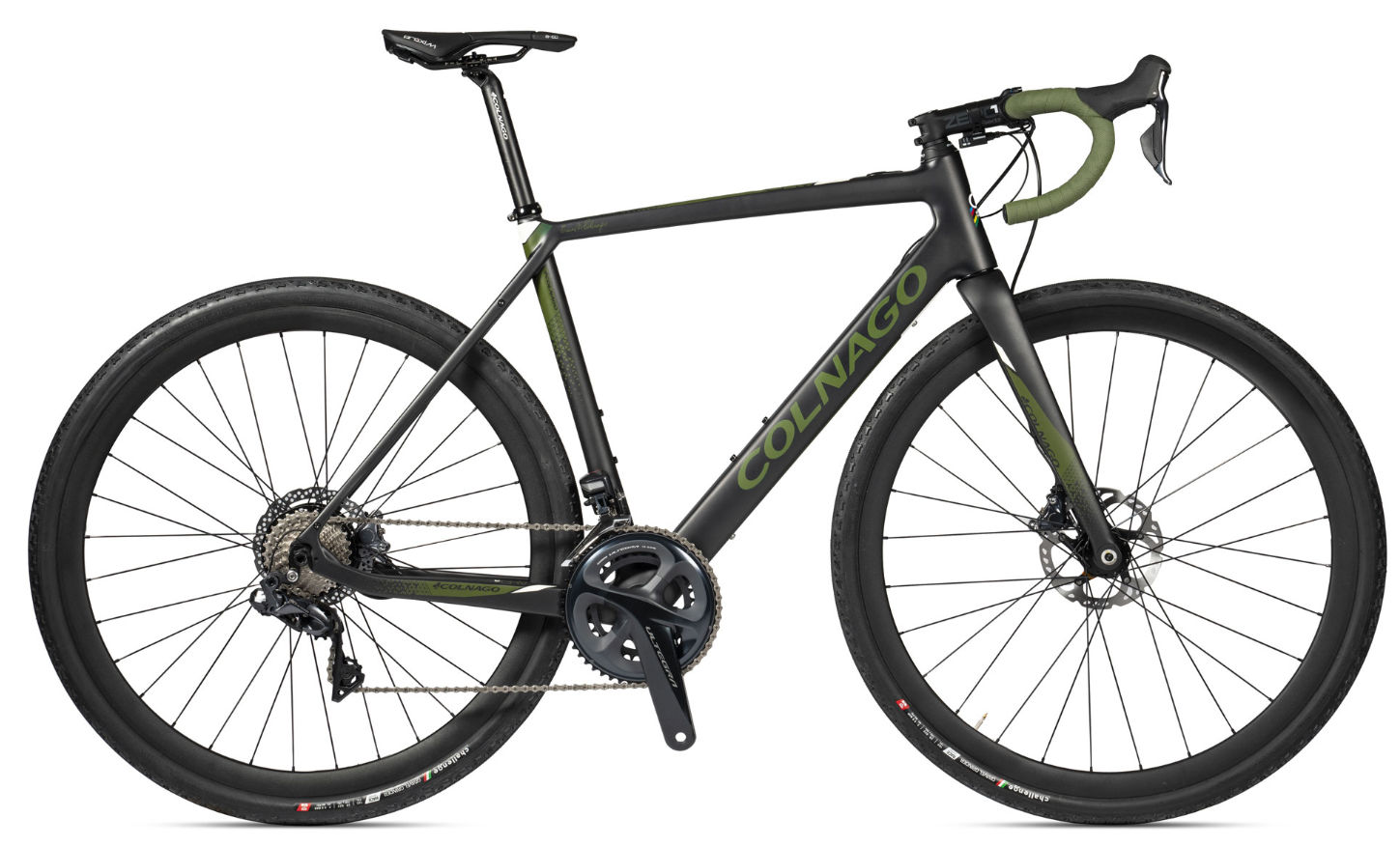

2020 Colnago eGRV geometry
Full frame geometry for the 2020 Colnago eGRV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 534 | 377 | 75.5 | 71.3 | 115 | 515 | 460 | 755 | 68 | 586 | 432 | 1009 |
| 49 | 554 | 380 | 74.7 | 71.5 | 135 | 532 | 490 | 781 | 68 | 594 | 432 | 1017 |
| 52 | 573 | 386 | 74 | 72 | 153 | 550 | 520 | 807 | 68 | 600 | 432 | 1023 |
| 55 | 590 | 394 | 73.4 | 72.7 | 169 | 570 | 550 | 832 | 68 | 608 | 435 | 1034 |
| 58 | 600 | 405 | 73.3 | 72.9 | 178 | 585 | 580 | 853 | 68 | 619 | 435 | 1045 |
All measurements in millimetres unless marked (°) for angles.
