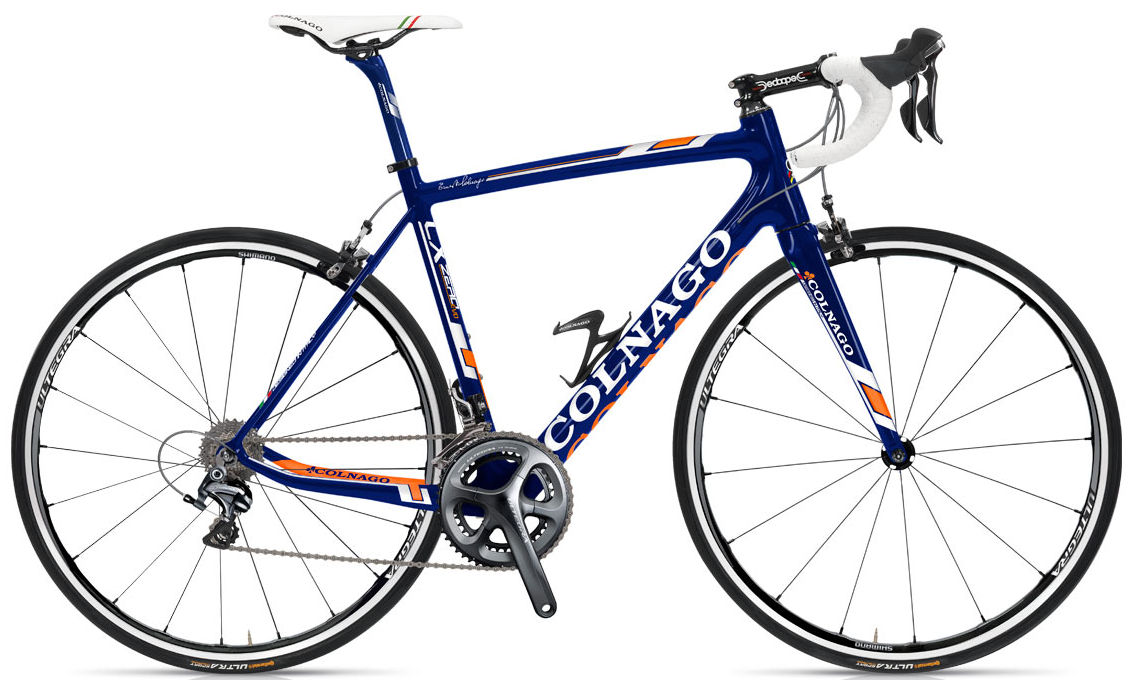

2015 Colnago CX Zero Evo geometry
Full frame geometry for the 2015 Colnago CX Zero Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 524 | 372 | 75.5 | 70.7 | 130 | 504 | 420 | 737 | 68 | 580 | 403 | 973 | 43 | 71 |
| 45s | 533 | 376 | 75.1 | 71.2 | 135 | 518 | 450 | 758 | 68 | 582 | 405 | 977 | 43 | 68 |
| 48s | 540 | 378 | 74.5 | 71.4 | 140 | 527 | 480 | 777 | 68 | 584 | 407 | 981 | 43 | 67 |
| 50s | 558 | 378 | 74 | 71.4 | 158 | 538 | 500 | 797 | 68 | 589 | 410 | 989 | 43 | 67 |
| 52s | 577 | 380 | 73.6 | 71.9 | 176 | 550 | 520 | 818 | 68 | 593 | 413 | 996 | 43 | 64 |
| 54s | 595 | 382 | 72.8 | 72.3 | 193 | 565 | 540 | 838 | 68 | 596 | 415 | 1001 | 43 | 61 |
| 56s | 609 | 392 | 72.7 | 72.7 | 206 | 580 | 560 | 856 | 68 | 606 | 417 | 1014 | 43 | 59 |
| 58s | 627 | 396 | 72.8 | 72.8 | 225 | 590 | 580 | 875 | 68 | 615 | 418 | 1024 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
