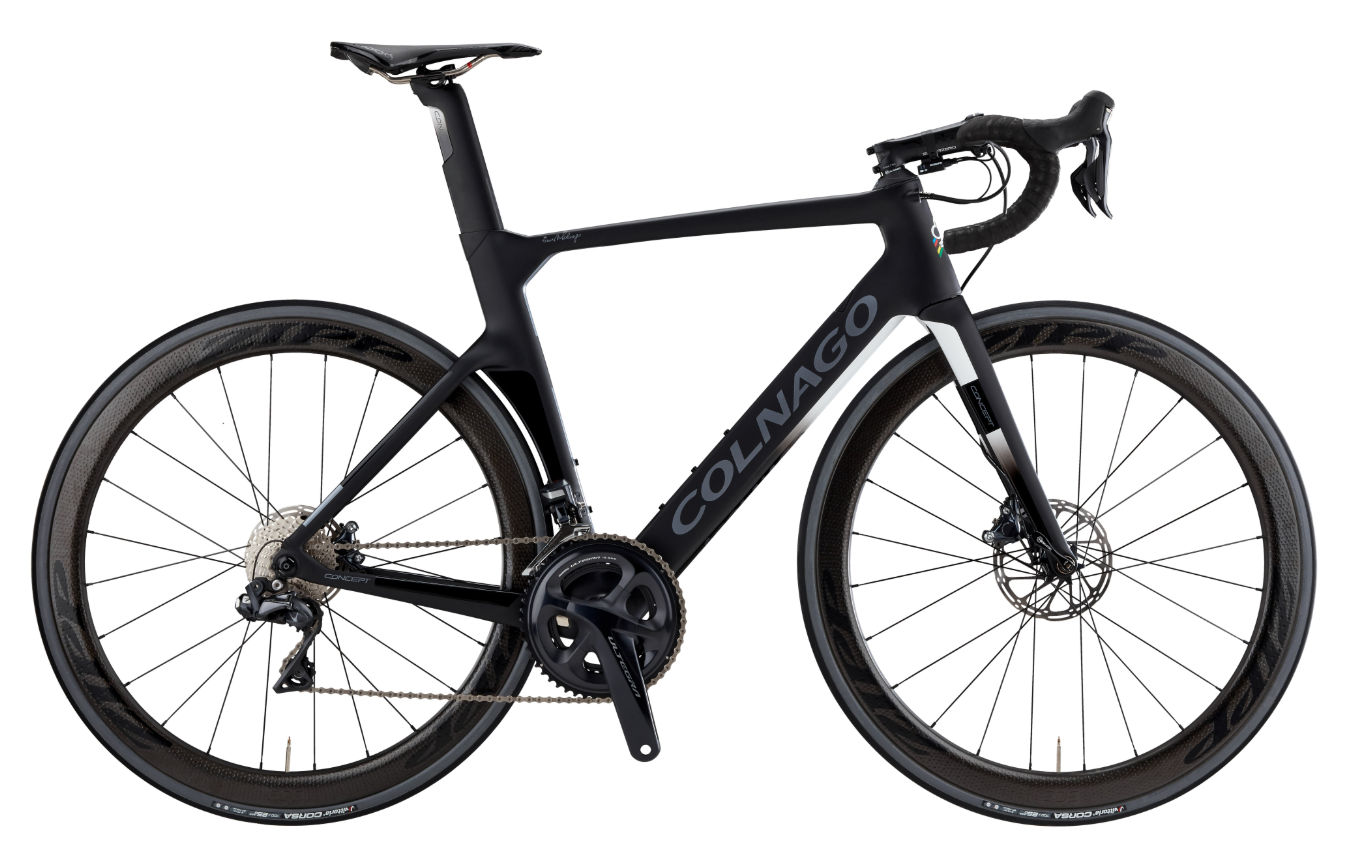

2018 Colnago Concept MK II geometry
Full frame geometry for the 2018 Colnago Concept MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 513 | 377 | 75.5 | 70.8 | 122 | 510 | 755 | 65 | 582 | 399 | 972 |
| 45s | 520 | 380 | 75.1 | 71.1 | 125 | 519 | 772 | 68 | 584 | 401 | 975 |
| 48s | 525 | 382 | 74.6 | 71.5 | 127 | 527 | 789 | 69 | 584 | 404 | 978 |
| 50s | 543 | 384 | 74 | 71.6 | 145 | 540 | 808 | 70 | 591 | 406 | 987 |
| 52s | 561 | 384 | 73.6 | 71.9 | 163 | 550 | 828 | 70 | 593 | 407 | 990 |
| 54s | 578 | 386 | 72.8 | 72.5 | 179 | 565 | 848 | 70 | 596 | 409 | 995 |
| 56s | 587 | 398 | 72.8 | 72.9 | 187 | 580 | 864 | 70 | 606 | 412 | 1008 |
| 58s | 604 | 408 | 72.8 | 73.1 | 204 | 596 | 883 | 70 | 620 | 413 | 1023 |
All measurements in millimetres unless marked (°) for angles.
