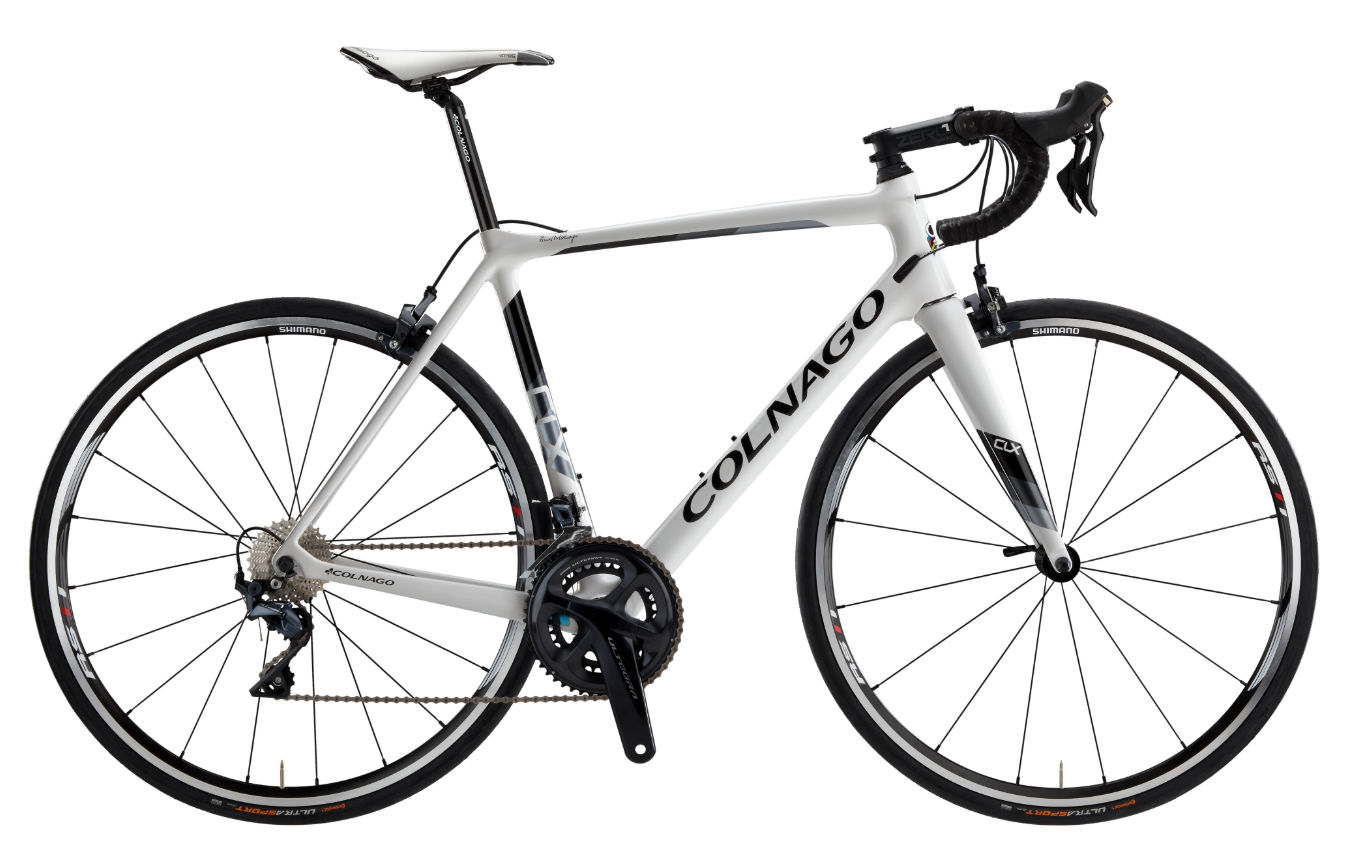

2018 Colnago CLX 5.0 geometry
Full frame geometry for the 2018 Colnago CLX 5.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 517 | 372 | 75.5 | 70.8 | 124 | 505 | 420 | 65 | 580 | 398 |
| 45s | 522 | 375 | 75 | 71.2 | 125 | 515 | 450 | 68 | 581 | 400 |
| 48s | 527 | 383 | 74.5 | 71.5 | 127 | 529 | 480 | 69 | 587 | 402 |
| 50s | 546 | 384 | 74 | 71.6 | 145 | 539 | 500 | 70 | 592 | 405 |
| 52s | 564 | 384 | 73.6 | 71.9 | 163 | 550 | 520 | 70 | 594 | 408 |
| 54s | 582 | 387 | 72.5 | 72.5 | 180 | 565 | 540 | 70 | 597 | 411 |
| 56s | 590 | 399 | 73 | 72.9 | 187 | 580 | 560 | 70 | 607 | 412 |
| 58s | 606 | 405 | 73 | 73.1 | 204 | 590 | 580 | 70 | 617 | 414 |
All measurements in millimetres unless marked (°) for angles.
