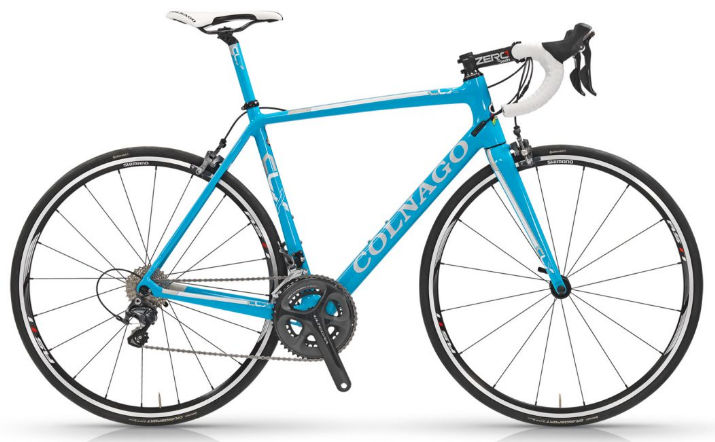

2016 Colnago CLX 4.0 geometry
Full frame geometry for the 2016 Colnago CLX 4.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 507 | 374 | 75.8 | 70.5 | 119 | 510 | 420 | 730 | 68 | 580 | 401 |
| 45s | 510 | 380 | 75.1 | 71.1 | 122 | 518 | 450 | 748 | 68 | 585 | 403 |
| 48s | 527 | 385 | 74.6 | 72 | 129 | 532 | 480 | 773 | 68 | 589 | 408 |
| 50s | 545 | 385 | 74 | 72.2 | 147 | 540 | 500 | 793 | 68 | 591 | 410 |
| 52s | 562 | 382 | 73.4 | 72.8 | 164 | 547 | 520 | 812 | 68 | 594 | 412 |
| 54s | 576 | 385 | 72.9 | 73 | 176 | 563 | 540 | 831 | 68 | 596 | 414 |
| 56s | 597 | 400 | 72.9 | 73.3 | 194 | 583 | 560 | 852 | 68 | 606 | 414 |
| 58s | 606 | 409 | 72.8 | 73.2 | 203 | 595 | 590 | 872 | 68 | 617 | 414 |
All measurements in millimetres unless marked (°) for angles.
