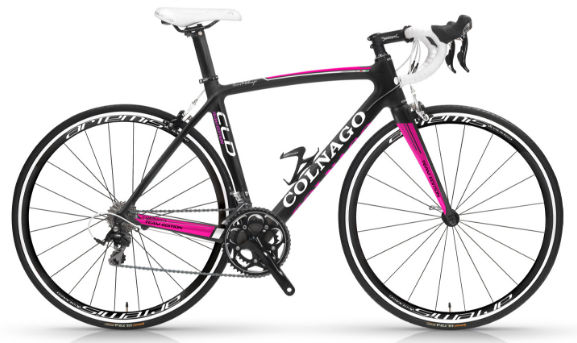

2013 Colnago CLD geometry
Full frame geometry for the 2013 Colnago CLD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40s | 517 | 366 | 75.4 | 70.6 | 125 | 500 | 400 | 728 | 65 | 575 | 397 | 963 |
| 43s | 527 | 373 | 75.4 | 71.2 | 130 | 510 | 430 | 746 | 68 | 579 | 399 | 968 |
| 46s | 534 | 375 | 74.9 | 71.6 | 135 | 520 | 460 | 764 | 69 | 581 | 400 | 971 |
| 49s | 544 | 379 | 74.5 | 71.6 | 145 | 530 | 490 | 785 | 69 | 586 | 402 | 978 |
All measurements in millimetres unless marked (°) for angles.
