2018 Colnago C64 geometry

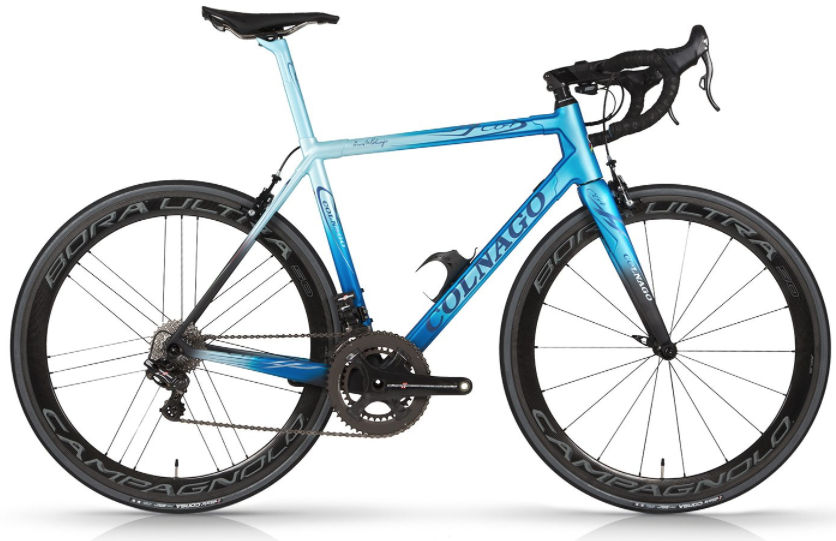

Name: 2018 Colnago C64
Brand: Colnago

Full frame geometry for the 2018 Colnago C64, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
42s	515	377	75.5	70.8	115	510	420	65	583	405	979	43
45s	522	381	75.1	71.2	118	520	450	68	586	405	981	43
48s	528	383	74.6	71.5	122	530	480	69	587	408	985	43
48h	542	378	74.5	71.5	137	529	480	69	587	408	985	43
50s	548	383	74	71.6	141	540	500	70	591	410	991	43
50h	562	378	74	71.6	156	540	500	70	591	410	991	43
52s	565	384	73.6	71.9	158	550	520	70	594	410	994	43
52h	579	379	73.6	71.9	173	550	520	70	594	410	994	43
54s	583	385	72.8	72.5	175	565	540	70	596	412	998	43
56s	591	398	72.8	72.9	182	582	560	70	608	414	1012	43
54h	597	380	72.8	72.5	190	565	540	70	596	412	998	43
58s	608	405	72.8	73.1	199	594	580	70	617	414	1021	43
56h	610	392	72.7	72.9	202	582	560	70	608	414	1012	43
60s	628	410	72.8	73.3	219	605	600	70	626	414	1030	43

All measurements in millimetres unless marked (°) for angles.
