2021 Colnago · RD

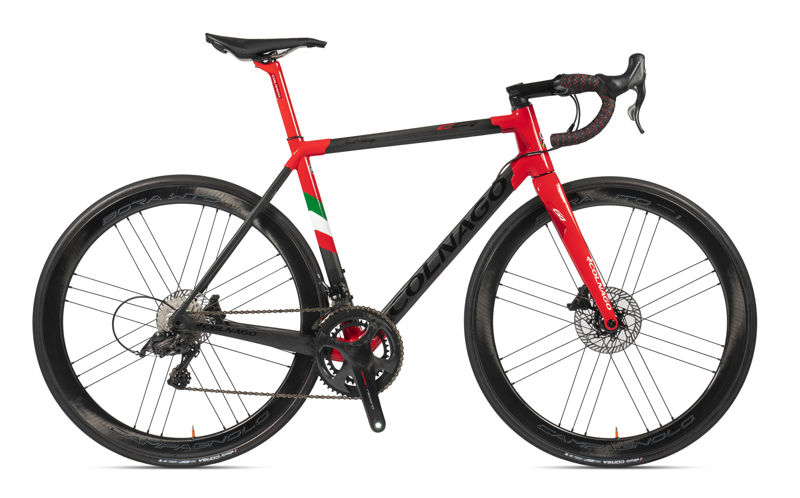

2021 Colnago C64 High geometry
Full frame geometry for the 2021 Colnago C64 High, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48h | 542 | 378 | 74.5 | 71.5 | 137 | 529 | 480 | 69 | 587 | 408 | 43 |
| 50h | 562 | 378 | 74 | 71.6 | 156 | 540 | 500 | 70 | 591 | 410 | 43 |
| 52h | 579 | 379 | 73.6 | 71.9 | 173 | 550 | 520 | 70 | 594 | 410 | 43 |
| 54h | 597 | 380 | 72.8 | 72.5 | 190 | 565 | 540 | 70 | 596 | 412 | 43 |
| 56h | 610 | 392 | 72.7 | 72.9 | 202 | 582 | 560 | 70 | 608 | 414 | 43 |
All measurements in millimetres unless marked (°) for angles.
