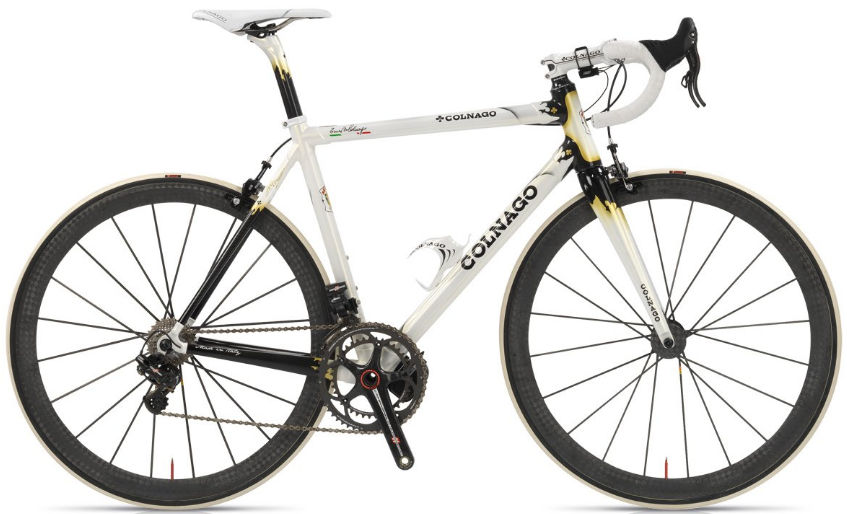

2014 Colnago C59 geometry

Name: 2014 Colnago C59
Brand: Colnago

Full frame geometry for the 2014 Colnago C59, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Front centre (mm)	Chainstay (mm)
42s	516	376	75.5	122	510	420	580	397
45s	524	380	75.1	125	519	450	582	399
48s	528	384	74.6	127	530	480	584	402
50s	547	383	74	145	540	500	589	405
52s	565	384	73.6	163	550	520	593	407
54s	582	385	72.8	179	565	540	596	409
56s	591	396	72.8	187	580	560	606	412
58s	608	401	72.8	204	590	580	614	413
52	—	—	74.5	125	530	—	587	401
53	—	—	74	133	535	—	587	402
54	—	—	74	143	540	—	591	402
55	—	—	74	152	545	—	592	402
56	—	—	73.5	161	550	—	593	405
57	—	—	73	169	557	—	594	406
58	—	—	72.9	177	565	—	596	407
59	—	—	72.8	185	572	—	597	408
60	—	—	72.8	185	580	—	602	409
61	—	—	72.8	195	586	—	606	409
62	—	—	72.8	202	590	—	609	410
63	—	—	72.8	207	594	—	611	411
64	—	—	72.8	217	597	—	613	412
65	—	—	72.8	227	600	—	615	413

All measurements in millimetres unless marked (°) for angles.
