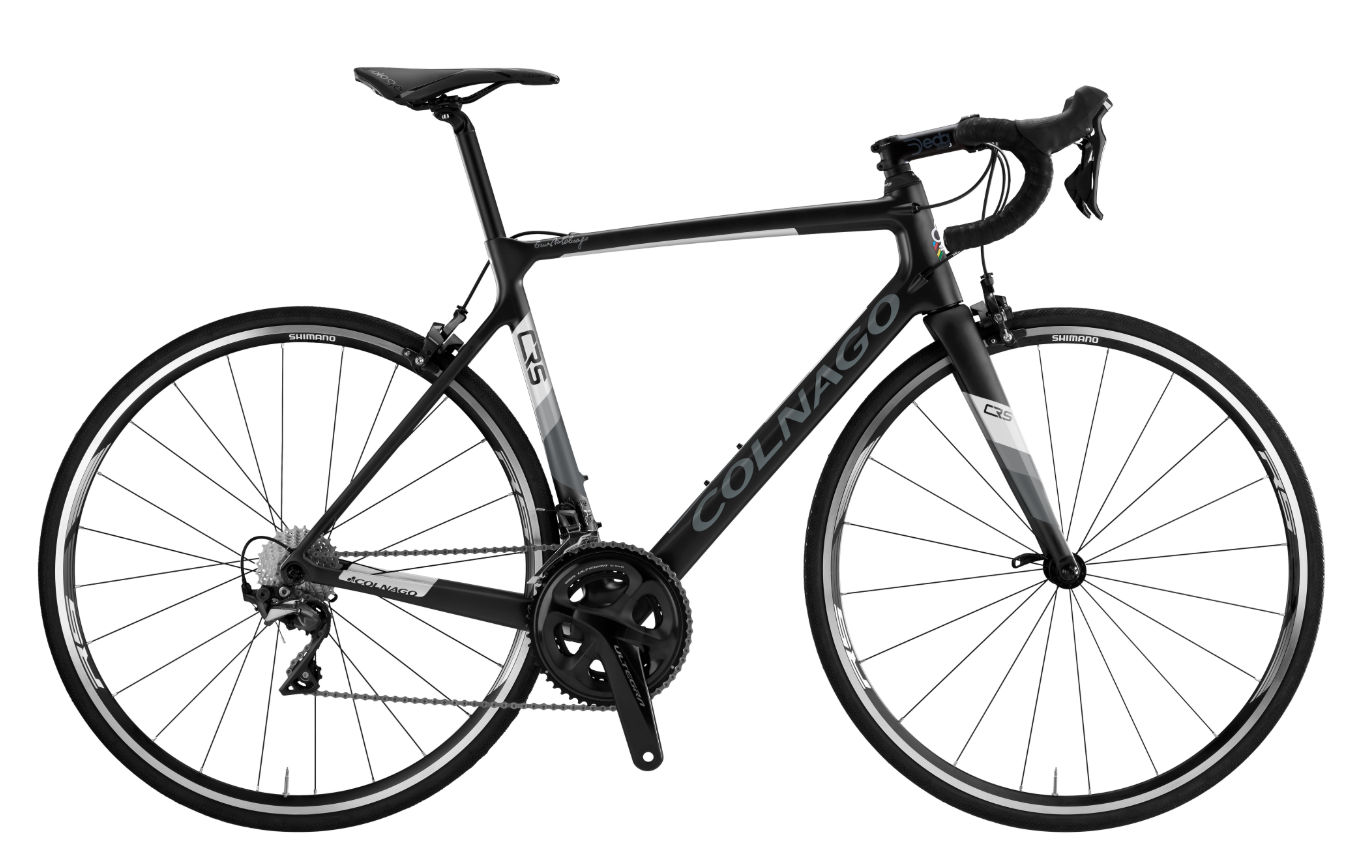

2017 Colnago C-RS geometry
Full frame geometry for the 2017 Colnago C-RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42s | 519 | 371 | 75.5 | 70.8 | 122 | 505 | 420 | 740 | 65 | 580 | 399 |
| 45s | 524 | 376 | 75.1 | 71.1 | 125 | 515 | 450 | 755 | 68 | 581 | 401 |
| 48s | 527 | 382 | 74.6 | 71.5 | 127 | 527 | 480 | 772 | 69 | 587 | 404 |
| 50s | 546 | 383 | 74 | 71.6 | 145 | 540 | 500 | 791 | 70 | 591 | 406 |
| 52s | 564 | 384 | 73.6 | 71.9 | 163 | 550 | 520 | 811 | 70 | 595 | 407 |
| 54s | 581 | 385 | 72.8 | 72.5 | 179 | 565 | 540 | 831 | 70 | 597 | 411 |
| 56s | 590 | 397 | 72.8 | 72.9 | 187 | 580 | 560 | 846 | 70 | 607 | 412 |
| 58s | 607 | 407 | 72.8 | 73.1 | 204 | 596 | 580 | 865 | 70 | 620 | 414 |
All measurements in millimetres unless marked (°) for angles.
