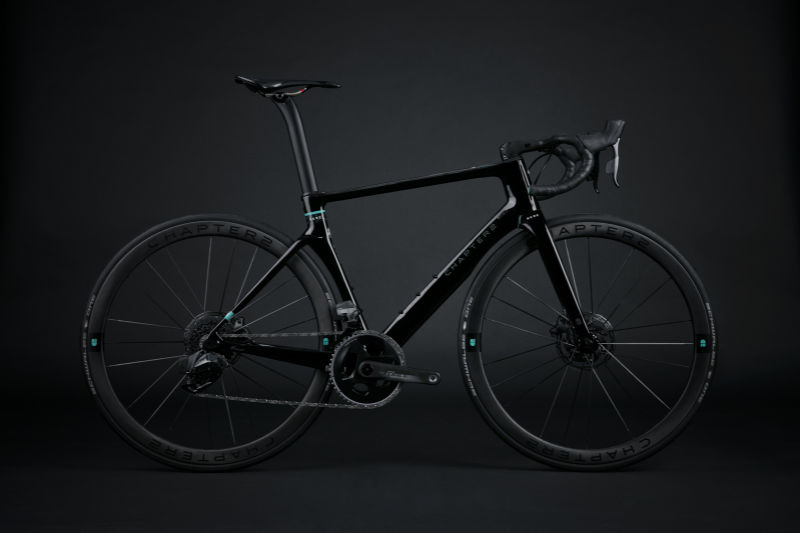

2025 Chapter2 RERE geometry
Full frame geometry for the 2025 Chapter2 RERE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 365 | 73 | 70 | 108 | 516 | 68 | 408 | 973 | 53 |
| S | 514 | 372 | 73 | 72 | 128 | 530 | 68 | 408 | 973 | 53 |
| M | 541 | 382 | 73 | 73 | 148 | 548 | 68 | 408 | 973 | 43 |
| L | 566 | 391 | 73 | 73 | 173 | 564 | 68 | 408 | 985 | 43 |
| XL | 591 | 400 | 73 | 73 | 190 | 582 | 68 | 408 | 1002 | 43 |
All measurements in millimetres unless marked (°) for angles.
