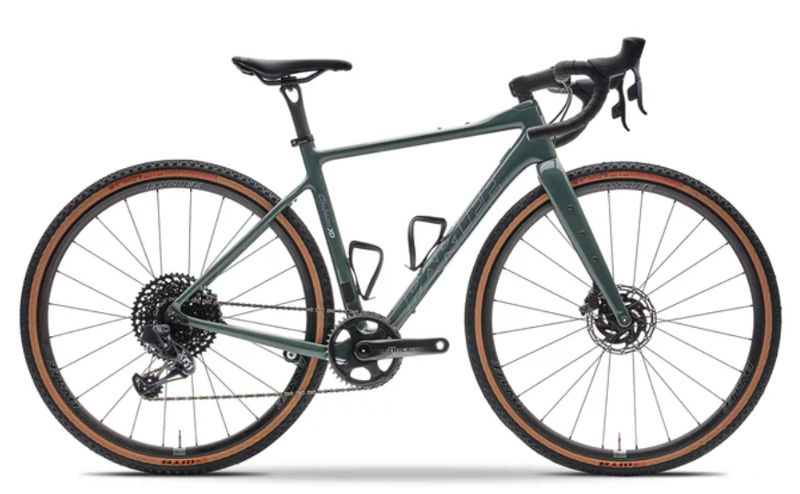

2024 Chapter2 Chebacco geometry

Name: 2024 Chapter2 Chebacco
Brand: Chapter2

Full frame geometry for the 2024 Chapter2 Chebacco, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
S Short	554	365	74	71.5	124	525	752	70	580	430	1000	47
S Mid	560	363	74	71.5	124	525	752	70	580	430	1000	47
S Tall	570	360	74	71.5	124	525	752	70	580	430	1000	47
M Short	571	375	73.5	71.8	141	545	769	70	594	430	1014	47
M Mid	577	474	73.5	71.8	141	545	769	70	594	430	1014	47
M Tall	587	470	73.5	71.8	141	545	769	70	594	430	1014	47
ML Short	589	479	73	71.8	158	560	787	70	604	430	1024	47
ML Mid	593	378	73	71.8	158	560	787	70	604	430	1024	47
L Short	602	390	73	71.8	174	575	802	70	619	430	1039	47
ML Tall	603	375	73	71.8	158	560	787	70	604	430	1024	47
L Mid	608	388	73	71.8	174	575	802	70	619	430	1039	47
L Tall	618	385	73	71.8	174	575	802	70	619	430	1039	47
XL Short	625	398	72.5	72	197	595	823	70	631	430	1052	47
XL Mid	631	396	72.5	72	197	595	823	70	631	430	1052	47
XL Ta	641	393	72.5	72	197	595	823	70	631	430	1052	47

All measurements in millimetres unless marked (°) for angles.
