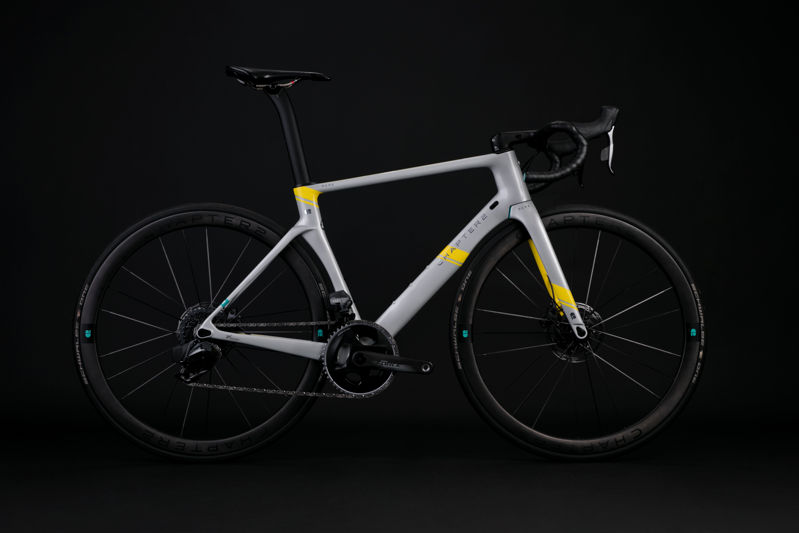

2024 Chapter2 Rere geometry
Full frame geometry for the 2024 Chapter2 Rere, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 365 | 73 | 70.5 | 98 | 516 | 427 | 68 | 575 | 408 | 973 | 53 |
| S | 514 | 372 | 73 | 72.2 | 118 | 530 | 447 | 68 | 575 | 408 | 973 | 53 |
| M | 541 | 382 | 73 | 73.1 | 138 | 548 | 472 | 68 | 575 | 408 | 973 | 43 |
| L | 566 | 391 | 73 | 73.5 | 163 | 564 | 497 | 68 | 587 | 408 | 985 | 43 |
| XL | 591 | 400 | 73 | 73.5 | 189 | 582 | 521 | 68 | 604 | 408 | 1002 | 43 |
All measurements in millimetres unless marked (°) for angles.
