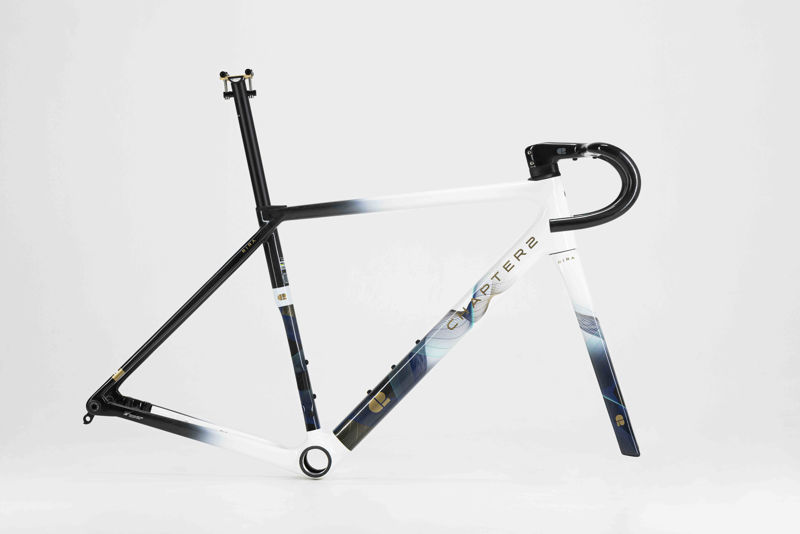

2025 Chapter2 Rira geometry
Full frame geometry for the 2025 Chapter2 Rira, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 489 | 361 | 74 | 70 | 90 | 502 | 430 | 74 | 574 | 410 | 972 | 53 |
| S | 517 | 371 | 74 | 72 | 112 | 520 | 450 | 73.5 | 576 | 410 | 974 | 53 |
| M | 545 | 381 | 74 | 73 | 135 | 538 | 470 | 73 | 574 | 410 | 975 | 43 |
| L | 573 | 391 | 74 | 74 | 161 | 555 | 500 | 72.5 | 584 | 410 | 982 | 43 |
| XL | 601 | 401 | 74 | 74 | 191 | 574 | 530 | 72 | 602 | 410 | 1001 | 43 |
All measurements in millimetres unless marked (°) for angles.
