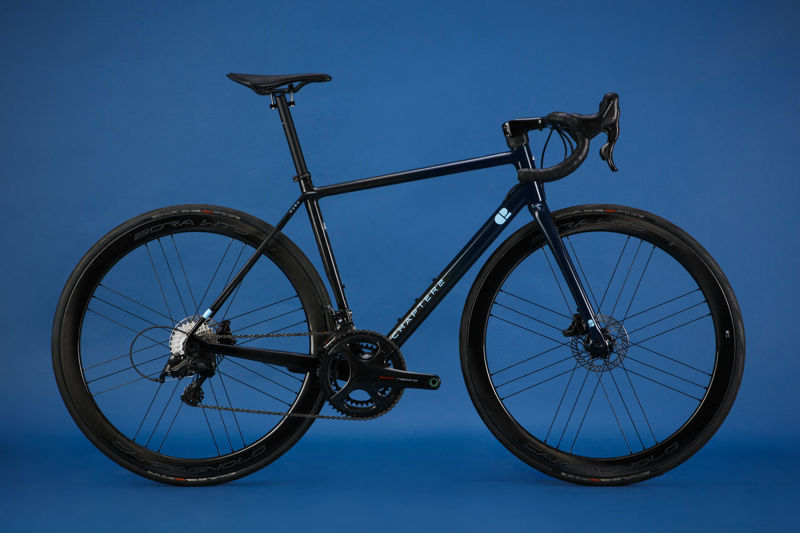

2024 Chapter2 Huru geometry
Full frame geometry for the 2024 Chapter2 Huru, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 360 | 73.5 | 70.5 | 99 | 507 | 455 | 70 | 571 | 405 | 965 | 53 |
| S | 520 | 369 | 73.5 | 72.2 | 119 | 523 | 475 | 70 | 573 | 405 | 968 | 53 |
| M | 545 | 378 | 73.5 | 73.1 | 139 | 540 | 495 | 70 | 571 | 405 | 966 | 43 |
| L | 570 | 387 | 73.5 | 73.5 | 164 | 556 | 520 | 70 | 584 | 405 | 978 | 43 |
| XL | 595 | 396 | 73.5 | 73.5 | 190 | 572 | 550 | 70 | 599 | 405 | 994 | 43 |
All measurements in millimetres unless marked (°) for angles.
