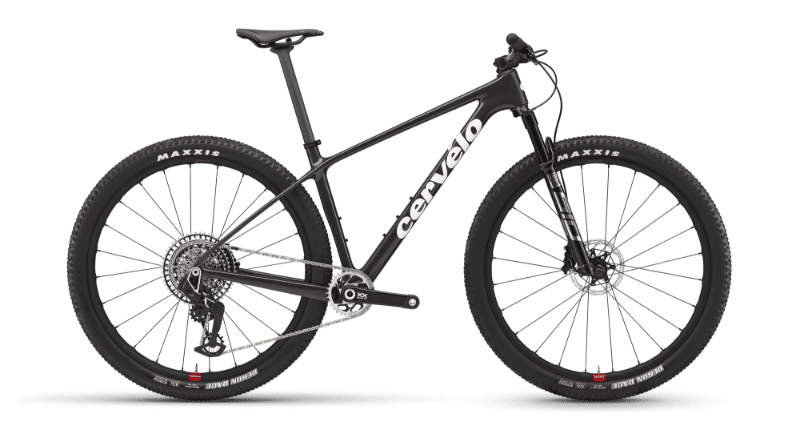

2026 Cervelo ZHT-5 geometry
Full frame geometry for the 2026 Cervelo ZHT-5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 606 | 409 | 74 | 69 | 89 | 582 | 705 | 62 | 667 | 430 | 1090 | 44 | 95 |
| MD | 612 | 433 | 74 | 69 | 95 | 608 | 740 | 62 | 693 | 430 | 1116 | 44 | 95 |
| LG | 623 | 457 | 74 | 69 | 107 | 635 | 782 | 62 | 722 | 430 | 1145 | 44 | 95 |
| XL | 636 | 484 | 74 | 69 | 121 | 666 | 810 | 62 | 754 | 430 | 1177 | 44 | 95 |
All measurements in millimetres unless marked (°) for angles.
