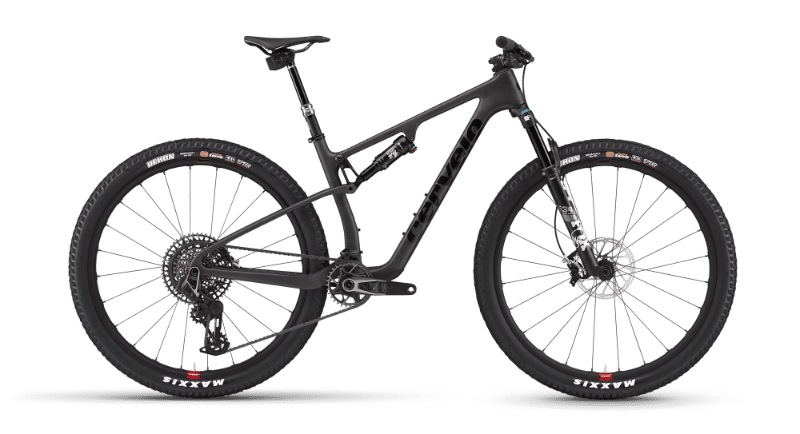

2026 Cervelo ZFS-5 120mm geometry
Full frame geometry for the 2026 Cervelo ZFS-5 120mm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 409 | 75.3 | 66.6 | 96 | 561.6 | 756 | 33 | 700 | 432 | 1130 | 44 |
| M | 600 | 433 | 75.1 | 66.6 | 102 | 589.1 | 754 | 33 | 726 | 435 | 1159 | 44 |
| L | 610 | 457 | 75 | 66.6 | 114 | 617.3 | 754 | 33 | 755 | 437 | 1190 | 44 |
| XL | 624 | 484 | 74.9 | 66.7 | 128 | 649.1 | 754 | 33 | 787 | 440 | 1225 | 44 |
All measurements in millimetres unless marked (°) for angles.
