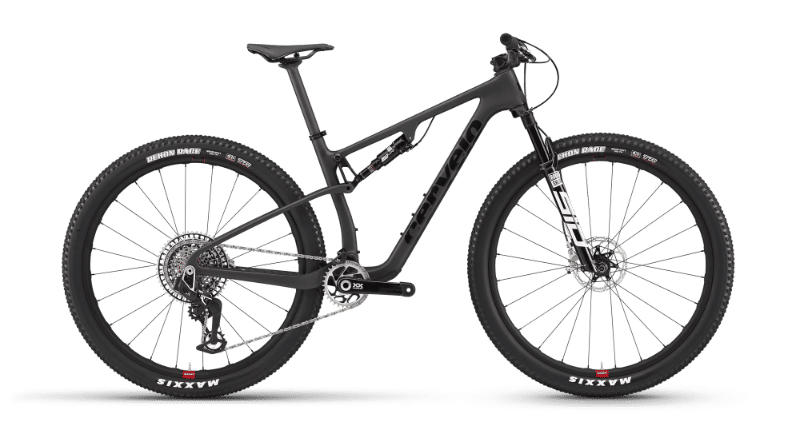

2026 Cervelo ZFS-5 100mm geometry
Full frame geometry for the 2026 Cervelo ZFS-5 100mm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 421 | 76.5 | 67.8 | 96 | 561.6 | 746 | 42 | 692 | 432 | 1120 | 44 |
| M | 590 | 445 | 76.3 | 67.8 | 102 | 589.1 | 744 | 42 | 718 | 435 | 1149 | 44 |
| L | 601 | 469 | 76.2 | 67.8 | 114 | 617.3 | 744 | 42 | 746 | 437 | 1180 | 44 |
| XL | 614 | 496 | 76 | 67.8 | 128 | 649.1 | 744 | 42 | 779 | 440 | 1215 | 44 |
All measurements in millimetres unless marked (°) for angles.
