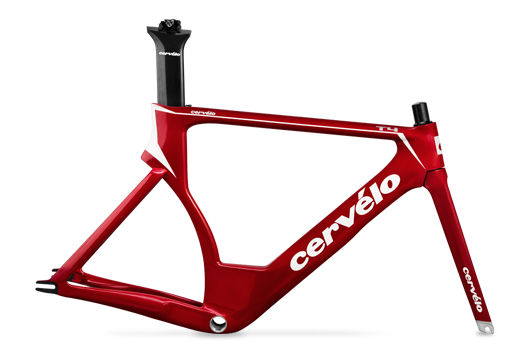

2013 Cervelo T4 geometry
Full frame geometry for the 2013 Cervelo T4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 482 | 405 | 75 | 72.5 | 90 | 535 | 746 | 60 | 586 | 380 | 958 | 43 | 60 |
| 54 | 498 | 419 | 75 | 72.5 | 105 | 557 | 762 | 60 | 609 | 380 | 981 | 43 | 60 |
| 56 | 516 | 433 | 75 | 72.5 | 125 | 573 | 780 | 60 | 626 | 380 | 998 | 43 | 60 |
| 58 | 535 | 445 | 75 | 72.5 | 145 | 589 | 799 | 60 | 643 | 380 | 1015 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
