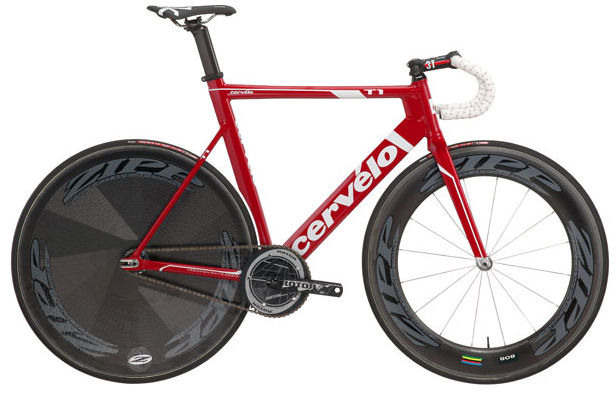

2013 Cervelo T1 geometry
Full frame geometry for the 2013 Cervelo T1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 510 | 373 | 76 | 74.5 | 120 | 501 | 785 | 50 | 540 | 387 | 921 | 35 | 56 |
| 54 | 530 | 383 | 76 | 74.5 | 140 | 516 | 805 | 50 | 555 | 387 | 936 | 35 | 56 |
| 56 | 550 | 397 | 76 | 74.5 | 160 | 535 | 825 | 50 | 574 | 387 | 956 | 35 | 56 |
| 58 | 570 | 406 | 76 | 74.5 | 180 | 550 | 845 | 50 | 588 | 387 | 970 | 35 | 56 |
All measurements in millimetres unless marked (°) for angles.
