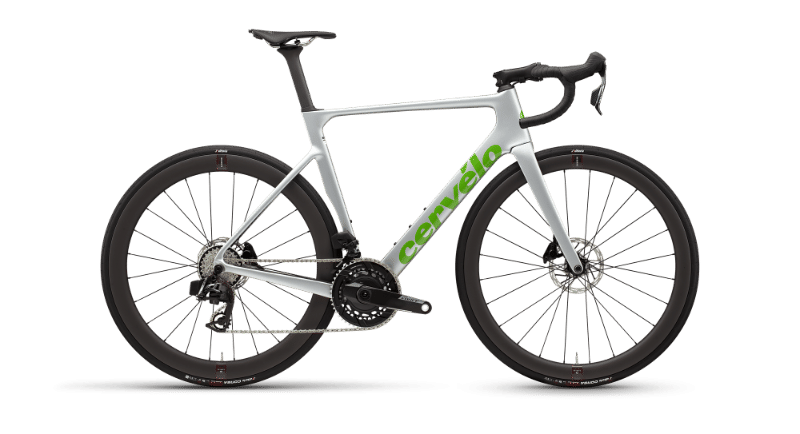

2026 Cervelo Soloist geometry
Full frame geometry for the 2026 Cervelo Soloist, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 491 | 363 | 73 | 71 | 86 | 516 | 708 | 74.5 | 574 | 410 | 972 | 57.5 | 57.3 |
| 51 | 515 | 374 | 73 | 72 | 106 | 532 | 748 | 74.5 | 576 | 410 | 974 | 51.5 | 57.3 |
| 54 | 540 | 383 | 73 | 73 | 130 | 548 | 774 | 72 | 578 | 410 | 977 | 45.5 | 57.3 |
| 56 | 565 | 392 | 73 | 73 | 156 | 565 | 798 | 72 | 595 | 410 | 994 | 45.5 | 57.3 |
| 58 | 590 | 401 | 73 | 73 | 184 | 581 | 824 | 69.5 | 611 | 410 | 1011 | 45.5 | 57.3 |
| 61 | 615 | 410 | 73 | 73 | 211 | 598 | 848 | 69.5 | 628 | 410 | 1028 | 45.5 | 57.3 |
All measurements in millimetres unless marked (°) for angles.
