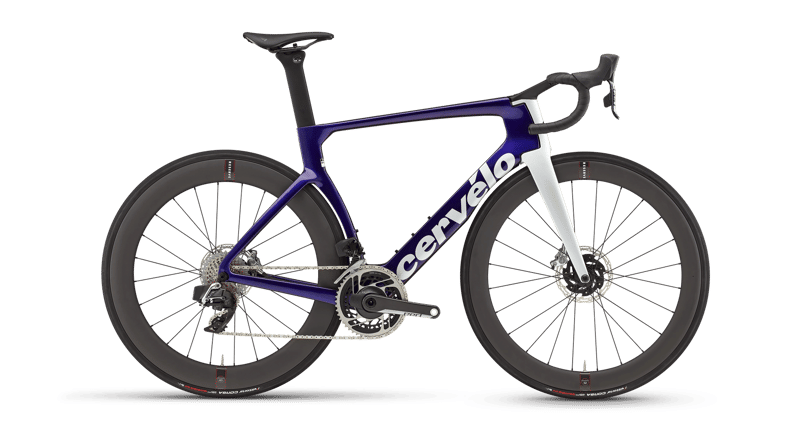

2023 Cervelo S5 geometry
Full frame geometry for the 2023 Cervelo S5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 496 | 367 | 73 | 71 | 69 | 520 | 715 | 72.5 | 579 | 405 | 973 | 58 | 56.1 |
| 51 | 519 | 376 | 73 | 72 | 87 | 535 | 736 | 72.5 | 580 | 405 | 974 | 52 | 56.1 |
| 54 | 542 | 384 | 73 | 73 | 109 | 550 | 754 | 70 | 581 | 405 | 975 | 46 | 56.2 |
| 56 | 565 | 392 | 73 | 73.5 | 130 | 565 | 782 | 70 | 588 | 405 | 982 | 43 | 56.2 |
| 58 | 588 | 401 | 73 | 73.5 | 157 | 581 | 813 | 67.5 | 604 | 405 | 999 | 43 | 56.2 |
All measurements in millimetres unless marked (°) for angles.
