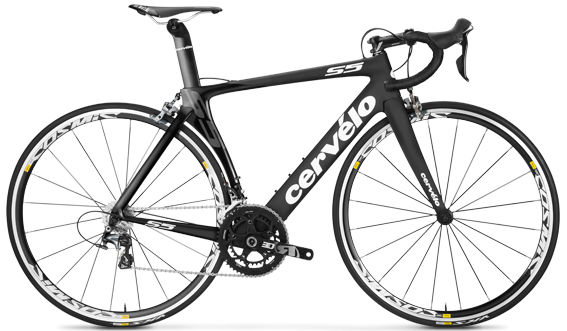

2015 Cervelo S5 MKII geometry
Full frame geometry for the 2015 Cervelo S5 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 496 | 367 | 73 | 70.5 | 99 | 519 | 697 | 68 | 579 | 405 | 974 | 53 | 62 |
| 51 | 519 | 376 | 73 | 72.2 | 117 | 535 | 720 | 68 | 580 | 405 | 975 | 53 | 52 |
| 54 | 542 | 384 | 73 | 73.1 | 135 | 550 | 741 | 68 | 577 | 405 | 972 | 43 | 56 |
| 56 | 565 | 392 | 73 | 73.5 | 157 | 565 | 769 | 68 | 588 | 405 | 983 | 43 | 54 |
| 58 | 588 | 401 | 73 | 73.5 | 181 | 581 | 791 | 68 | 604 | 405 | 999 | 43 | 54 |
| 61 | 611 | 409 | 73 | 73.5 | 205 | 596 | 813 | 68 | 618 | 405 | 1014 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
