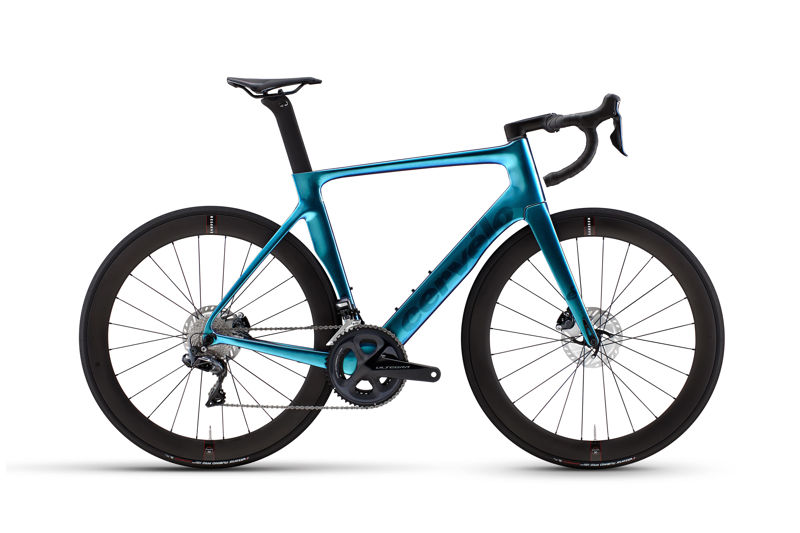

2021 Cervelo S-Series geometry
Full frame geometry for the 2021 Cervelo S-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 360 | 73 | 71 | 103 | 515 | 713 | 72.5 | 575 | 405 | 969 | 58 |
| 51 | 530 | 369 | 73 | 72 | 124 | 532 | 742 | 72.5 | 577 | 405 | 971 | 52 |
| 54 | 555 | 378 | 73 | 72 | 147 | 548 | 772 | 70 | 579 | 405 | 973 | 46 |
| 56 | 580 | 387 | 73 | 73.5 | 171 | 563 | 801 | 70 | 586 | 405 | 981 | 43 |
| 58 | 605 | 396 | 73 | 73.5 | 199 | 581 | 825 | 67.5 | 604 | 405 | 999 | 43 |
| 61 | 630 | 405 | 73 | 73.5 | 225 | 597 | 849 | 67.5 | 620 | 405 | 1016 | 43 |
All measurements in millimetres unless marked (°) for angles.
