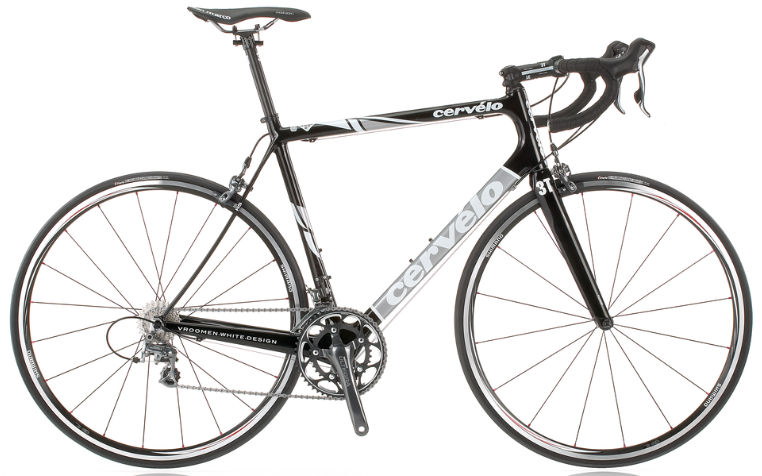

2010 Cervelo RS geometry
Full frame geometry for the 2010 Cervelo RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 355 | 73 | 72 | 175 | 515 | 732 | 40 | 555 | 410 | 962 | 40 | 59 |
| 51 | 531 | 369 | 73 | 71 | 140 | 532 | 742 | 68 | 588 | 410 | 988 | 53 | 59 |
| 54 | 555 | 376 | 73 | 72 | 160 | 546 | 764 | 68 | 590 | 410 | 990 | 49 | 57 |
| 56 | 579 | 388 | 73 | 73 | 180 | 565 | 787 | 68 | 593 | 410 | 993 | 43 | 57 |
| 58 | 599 | 397 | 73 | 73 | 200 | 580 | 805 | 68 | 608 | 410 | 1009 | 43 | 57 |
| 61 | 618 | 403 | 73 | 73 | 220 | 592 | 816 | 68 | 620 | 410 | 1021 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
