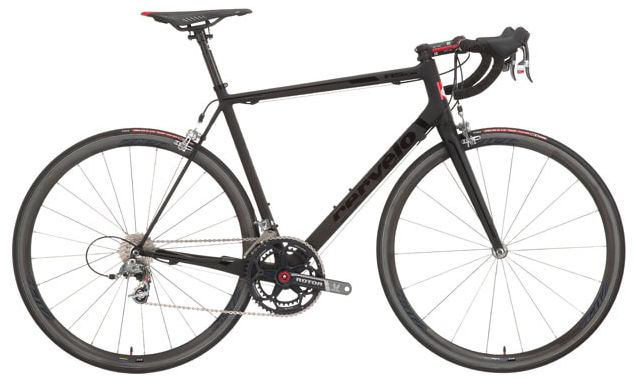

2011 Cervelo R5Ca geometry
Full frame geometry for the 2011 Cervelo R5Ca, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 360 | 70.6 | 70.5 | 108 | 538 | 693 | 68 | 575 | 405 | 970 | 53 | 62 |
| 51 | 530 | 369 | 70.7 | 72.2 | 128 | 554 | 723 | 68 | 577 | 405 | 972 | 53 | 52 |
| 54 | 555 | 378 | 70.8 | 73.1 | 148 | 570 | 753 | 68 | 575 | 405 | 970 | 43 | 57 |
| 56 | 580 | 387 | 70.9 | 73.5 | 173 | 586 | 784 | 68 | 587 | 405 | 982 | 43 | 54 |
| 58 | 605 | 396 | 71 | 73.5 | 199 | 603 | 815 | 68 | 604 | 405 | 999 | 43 | 54 |
| 61 | 630 | 405 | 71.1 | 73.5 | 225 | 619 | 846 | 68 | 620 | 405 | 1016 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
