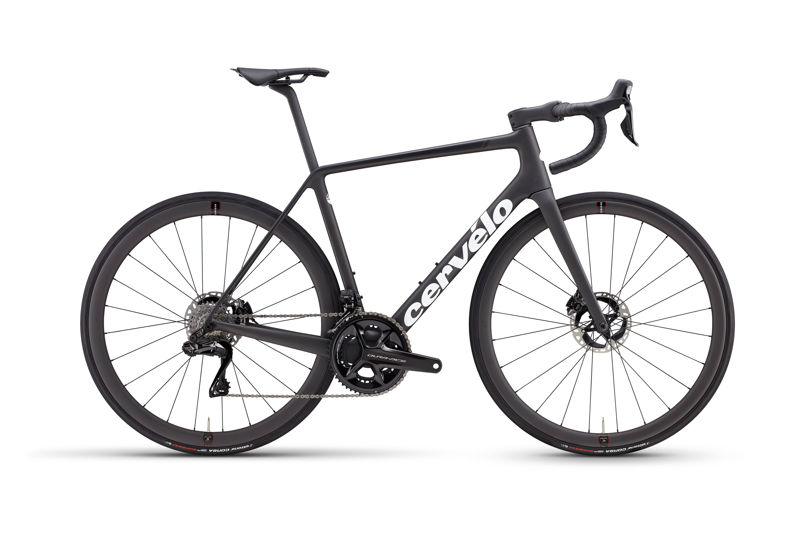

2022 Cervelo R5 geometry
Full frame geometry for the 2022 Cervelo R5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 497 | 363 | 73 | 71 | 93 | 515 | 695 | 74.5 | 574 | 410 | 972 | 57.5 | 57.3 |
| 51 | 522 | 371 | 73 | 72 | 114 | 531 | 724 | 74.5 | 576 | 410 | 974 | 51.5 | 57.3 |
| 54 | 547 | 380 | 73 | 73 | 137 | 548 | 755 | 72 | 578 | 410 | 977 | 45.5 | 57.3 |
| 56 | 572 | 389 | 73 | 73 | 163 | 564 | 778 | 72 | 594 | 410 | 994 | 45.5 | 57.3 |
| 58 | 597 | 398 | 73 | 73 | 192 | 581 | 800 | 69.5 | 611 | 410 | 1011 | 45.5 | 57.3 |
| 61 | 622 | 407 | 73 | 73 | 218 | 598 | 824 | 69.5 | 628 | 410 | 1028 | 45.5 | 57.3 |
All measurements in millimetres unless marked (°) for angles.
