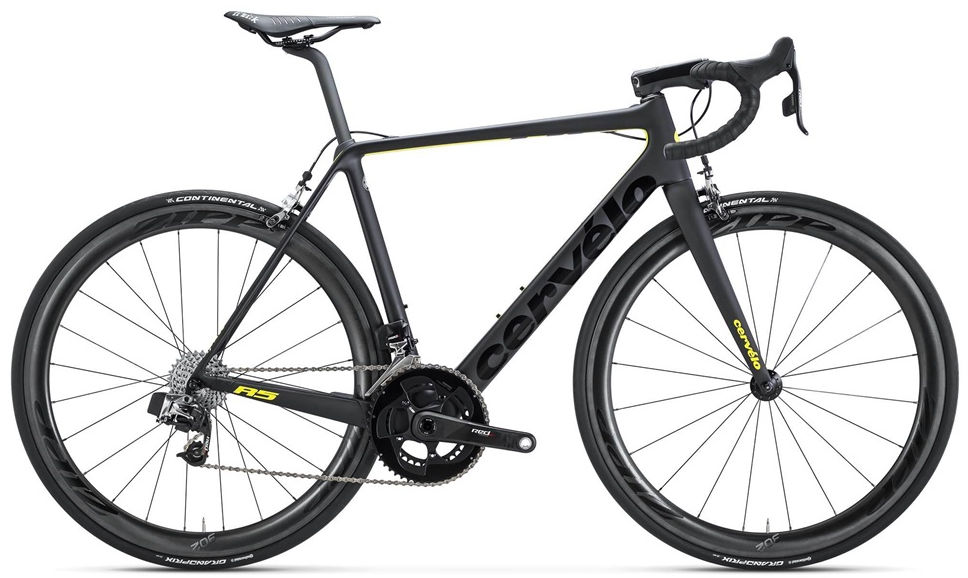

2017 Cervelo R5 MKIII geometry
Full frame geometry for the 2017 Cervelo R5 MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 499 | 362 | 73 | 71 | 83 | 516 | 693 | 74 | 573 | 410 | 972 | 57 | 57 |
| 51 | 524 | 371 | 73 | 72 | 103 | 532 | 723 | 74 | 576 | 410 | 974 | 51 | 57 |
| 54 | 548 | 380 | 73 | 73 | 125 | 548 | 753 | 72 | 577 | 410 | 976 | 45 | 57 |
| 56 | 572 | 389 | 73 | 73 | 151 | 564 | 784 | 72 | 594 | 410 | 993 | 45 | 57 |
| 58 | 596 | 399 | 73 | 73 | 178 | 581 | 815 | 70 | 611 | 410 | 1011 | 45 | 57 |
| 61 | 620 | 408 | 73 | 73 | 203 | 598 | 846 | 70 | 627 | 410 | 1027 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
