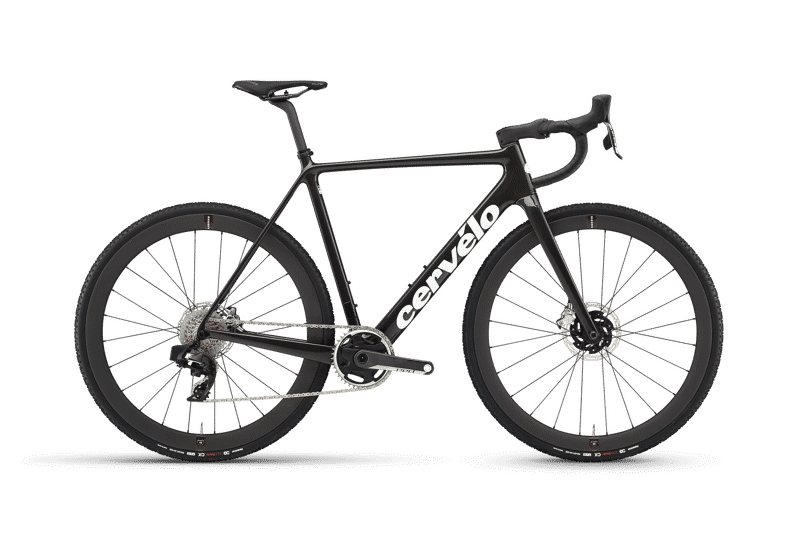

2023 Cervelo R5-CX geometry
Full frame geometry for the 2023 Cervelo R5-CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 520 | 371 | 74.5 | 71.5 | 97 | 517 | 771 | 63 | 425 | 998 | 51 | 58.7 |
| 54 | 540 | 380 | 74 | 71.5 | 118 | 536 | 785 | 63 | 425 | 1014 | 51 | 58.7 |
| 56 | 560 | 389 | 73.5 | 71.5 | 139 | 556 | 797 | 63 | 425 | 1029 | 51 | 58.7 |
| 58 | 580 | 398 | 73 | 72 | 157 | 574 | 817 | 63 | 425 | 1037 | 48 | 58.7 |
All measurements in millimetres unless marked (°) for angles.
