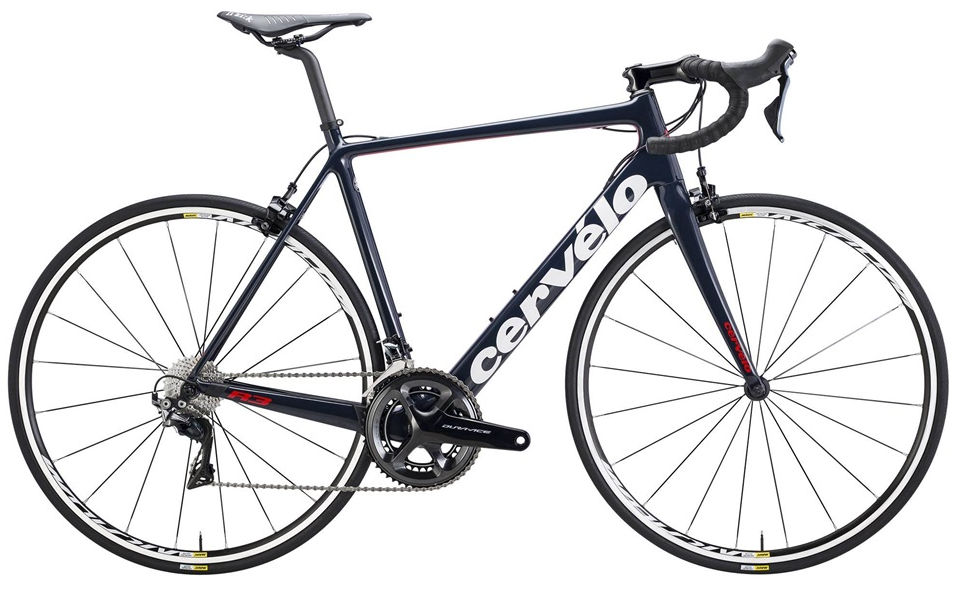

2017 Cervelo R3 MKIV geometry
Full frame geometry for the 2017 Cervelo R3 MKIV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 360 | 73 | 71 | 89 | 515 | 693 | 74 | 573 | 410 | 971 | 57 | 57 |
| 51 | 530 | 369 | 73 | 72 | 110 | 531 | 723 | 74 | 575 | 410 | 974 | 51 | 57 |
| 54 | 555 | 378 | 73 | 73 | 133 | 548 | 753 | 72 | 577 | 410 | 973 | 45 | 57 |
| 56 | 580 | 387 | 73 | 73 | 159 | 564 | 784 | 72 | 594 | 410 | 993 | 45 | 57 |
| 58 | 605 | 396 | 73 | 73 | 188 | 581 | 815 | 70 | 611 | 410 | 1011 | 45 | 57 |
| 61 | 630 | 405 | 73 | 73 | 214 | 598 | 846 | 70 | 627 | 410 | 1027 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
